Volvo

BM A25 B 4x4

Off-Highway Truck

Max Speed
31.7 mph
Gross Power
244.0 hp
Net Power
240.0 hp
All off-highway trucks

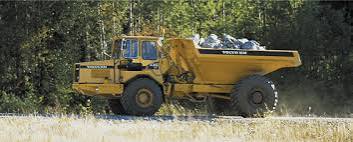

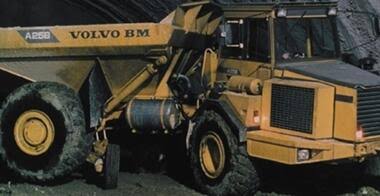

Volvo BM A25 B 4x4 Off-Highway Truck
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity74.0 gal
Tire Sizefront 23.5R25 / rear 29.5R25
Engine Oil Capacity6.4 gal
Cooling System Fluid Capacity8.0 gal
Hydraulic System Fluid Capacity42.3 gal
Operating Voltage24 V
Transmission Fluid Capacity4.3 gal

Engine

Engine specifications
Engine ModelTD 71 K
Displacement411 in³
Power Measured @2,400 rpm
Gross Power244.0 hp
Net Power240.0 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,600 rpm
Max Torque590 lb-ft

Weights

Weights specifications
Total Empty33,957 lb
Front Axle - empty19,625 lb
Total Loaded83,554 lb
Rear Axle - empty14,333 lb
Front Axle - loaded27,116 lb
Rear Axle - loaded56,437 lb

Dimensions

Dimensions specifications
Ground Clearance18 in
Wheelbase183 in
Overall Length353 in
Overall Width126 in
Overall Height126 in
Dump Height226 in
Dump Ground Clearance26 in

Transmission

Transmission specifications
Max Speed31.7 mph
Transmission TypePlanetary Transmission
Number of Forward Gears10
Number of Reverse Gears2

Dump

Dump specifications
Rated Payload49,610 lb
Dump Angle70 °
Raise Time12.0 s
Lower Time10.0 s
Capacity - Heaped17.09 yd³
Capacity - Struck13.30 yd³
