Volvo

BM A25C 4x4

Off-Highway Truck

Max Speed
31.7 mph
Gross Power
255.0 hp
Net Power
251.0 hp
All off-highway trucks

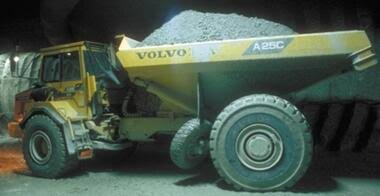

Volvo BM A25C 4x4 Off-Highway Truck
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity74.0 gal
Tire Sizefront 23.5R25 / rear 29.5R25
Engine Oil Capacity6.4 gal
Cooling System Fluid Capacity9.8 gal
Hydraulic System Fluid Capacity42.3 gal
Operating Voltage24 V
Transmission Fluid Capacity4.3 gal

Engine

Engine specifications
Engine ModelTD 73 KCE
Displacement411 in³
Power Measured @2,400 rpm
Gross Power255.0 hp
Net Power251.0 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,200 rpm
Max Torque797 lb-ft

Weights

Weights specifications
Total Empty34,767 lb
Front Axle - empty20,172 lb
Total Loaded84,370 lb
Rear Axle - empty14,595 lb
Front Axle - loaded27,668 lb
Rear Axle - loaded56,702 lb

Dimensions

Dimensions specifications
Ground Clearance19 in
Wheelbase183 in
Overall Length353 in
Overall Width126 in
Overall Height126 in
Dump Height226 in
Dump Ground Clearance26 in

Transmission

Transmission specifications
Max Speed31.7 mph
Transmission TypeElectronically controlled automatic planetary transmission
Number of Forward Gears10
Number of Reverse Gears2

Dump

Dump specifications
Rated Payload49,604 lb
Dump Angle70 °
Raise Time12.0 s
Lower Time10.0 s
Capacity - Heaped17.09 yd³
Capacity - Struck13.30 yd³
