Volvo

BM A30 6x6

Off-Highway Truck

Max Speed
32.7 mph
Gross Power
287.0 hp
Net Power
285.0 hp
All off-highway trucks

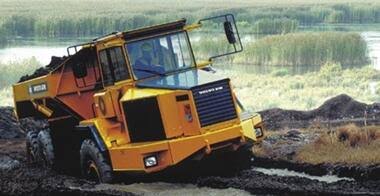

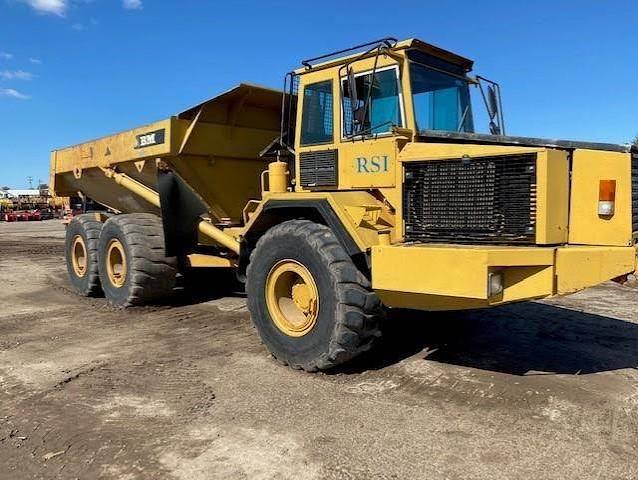

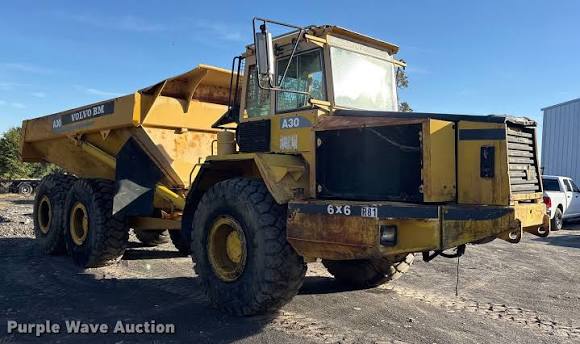

Volvo BM A30 6x6 Off-Highway Truck
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity95.2 gal
Tire Size30/65R25
Engine Oil Capacity6.1 gal
Cooling System Fluid Capacity13.8 gal
Hydraulic System Fluid Capacity51.3 gal
Operating Voltage24 V
Transmission Fluid Capacity9.3 gal

Engine

Engine specifications
Engine ModelTD 102KH
Displacement586 in³
Power Measured @2,200 rpm
Gross Power287.0 hp
Net Power285.0 hp
Number of Cylinders6
AspirationTurbocharged intercooled
Torque Measured @1,400 rpm
Max Torque848 lb-ft

Weights

Weights specifications
Total Empty46,077 lb
Front Axle - empty24,912 lb
Total Loaded105,601 lb
Rear Axle - empty21,164 lb
Front Axle - loaded33,180 lb
Rear Axle - loaded72,422 lb

Dimensions

Dimensions specifications
Ground Clearance19 in
Wheelbase165 in
Overall Length402 in
Overall Width118 in
Overall Height134 in
Dump Height257 in
Dump Ground Clearance24 in

Transmission

Transmission specifications
Max Speed32.7 mph
Transmission TypeFully automatic planetary transmission
Number of Forward Gears6
Number of Reverse Gears2

Dump

Dump specifications
Rated Payload59,525 lb
Dump Angle70 °
Raise Time14.0 s
Lower Time13.0 s
Capacity - Heaped21.59 yd³
Capacity - Struck16.90 yd³
