Volvo

BM A40 6x6

Off-Highway Truck

Max Speed
32.7 mph
Gross Power
398.0 hp
Net Power
395.0 hp
All off-highway trucks

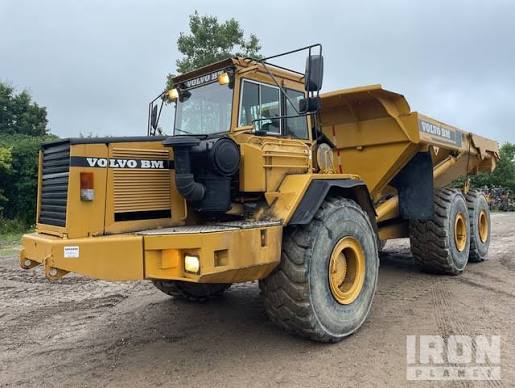

Volvo BM A40 6x6 Off-Highway Truck
1 / 5
Image 1 of 5
Image: ironplanet.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity95.2 gal
Tire Size29.5 R25
Engine Oil Capacity10.4 gal
Cooling System Fluid Capacity36.5 gal
Hydraulic System Fluid Capacity68.7 gal
Operating Voltage24 V
Transmission Fluid Capacity10.1 gal

Engine

Engine specifications
Engine ModelTD 122 KF
Displacement732 in³
Power Measured @2,100 rpm
Gross Power398.0 hp
Net Power395.0 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,400 rpm
Max Torque1,228 lb-ft

Weights

Weights specifications
Total Empty66,040 lb
Front Axle - empty33,520 lb
Total Loaded145,420 lb
Rear Axle - empty32,520 lb
Front Axle - loaded39,910 lb
Rear Axle - loaded105,510 lb

Dimensions

Dimensions specifications
Ground Clearance25 in
Wheelbase175 in
Overall Length439 in
Overall Width135 in
Overall Height146 in
Dump Height295 in
Dump Ground Clearance39 in

Transmission

Transmission specifications
Max Speed32.7 mph
Transmission TypeFully automatic planetary transmission
Number of Forward Gears12
Number of Reverse Gears3

Dump

Dump specifications
Rated Payload79,366 lb
Dump Angle71 °
Raise Time15.0 s
Lower Time12.0 s
Capacity - Heaped28.80 yd³
Capacity - Struck21.40 yd³

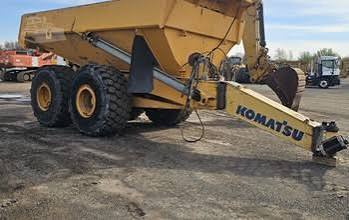

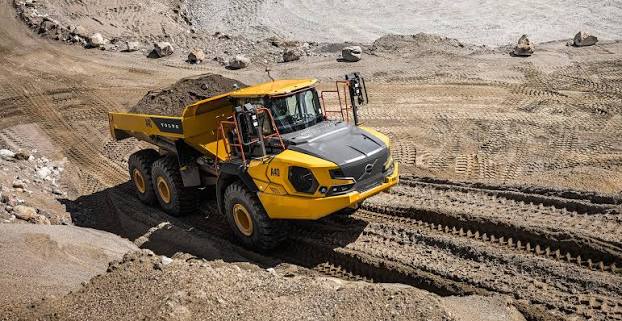

Comparable machines
