Volvo

BM BM A35

Off-Highway Truck

Max Speed
33.1 mph
Gross Power
326.0 hp
Net Power
322.0 hp
All off-highway trucks

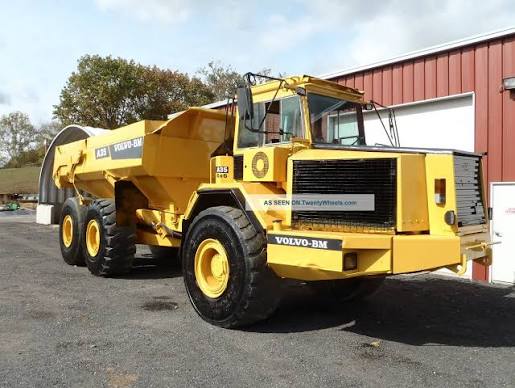

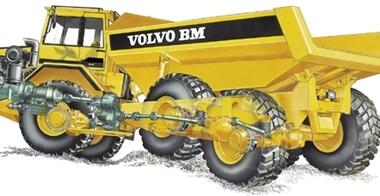

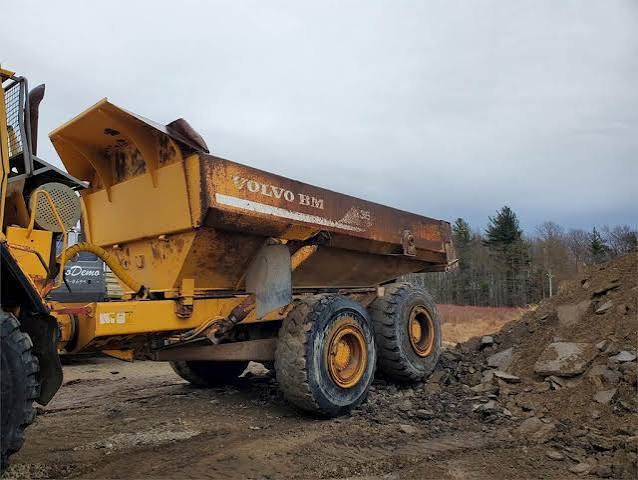

Volvo BM BM A35 Off-Highway Truck
1 / 5
Image 1 of 5
Image: volvoce.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity95.2 gal
Tire Size26.5 R 25
Engine Oil Capacity8.7 gal
Cooling System Fluid Capacity23.3 gal
Hydraulic System Fluid Capacity51.3 gal
Operating Voltage24 V
Transmission Fluid Capacity10.1 gal

Engine

Engine specifications
Engine ModelTD 122 GA
Displacement732 in³
Power Measured @2,050 rpm
Gross Power326.0 hp
Net Power322.0 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,300 rpm
Max Torque959 lb-ft

Weights

Weights specifications
Total Empty55,777 lb
Front Axle - empty28,925 lb
Total Loaded126,325 lb
Rear Axle - empty26,852 lb
Front Axle - loaded35,847 lb
Rear Axle - loaded90,478 lb

Dimensions

Dimensions specifications
Ground Clearance20 in
Wheelbase212 in
Overall Length425 in
Overall Width126 in
Overall Height137 in
Dump Height295 in
Dump Ground Clearance41 in

Transmission

Transmission specifications
Max Speed33.1 mph
Transmission TypeAutomatic planetary transmission
Number of Forward Gears6
Number of Reverse Gears2

Dump

Dump specifications
Rated Payload70,548 lb
Dump Angle73 °
Raise Time15.0 s
Lower Time18.0 s
Capacity - Heaped24.90 yd³
Capacity - Struck18.90 yd³
