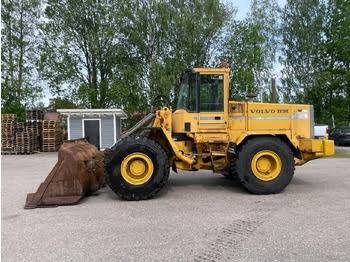

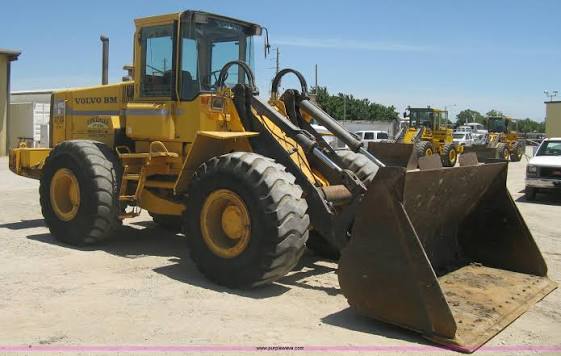

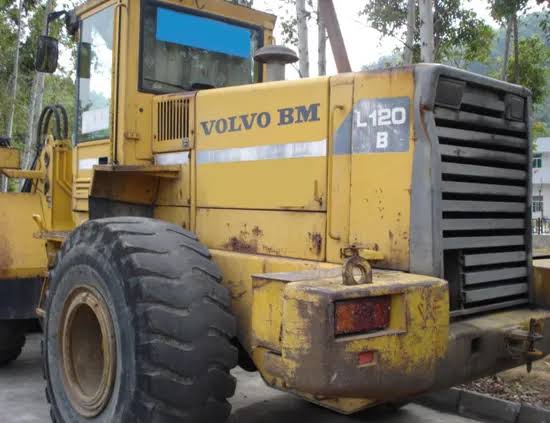

Volvo
BM L120B
- Operating Weight
- 33,735 lb
- Bucket Capacity - heaped
- 3.70 yd³
- Gross Power
- 200.0 hp
- Net Power
- 190.0 hp
1 / 5
Image 1 of 5
Specifications
45 data points
Operating Specifications
| Operating Weight | 33,735 lb |
|---|---|
| Fuel Capacity | 67.4 gal |
| Tire Size | 23.5R25 |
| Hydraulic System Fluid Capacity | 58.2 gal |
| Static Tipping Weight | 27,999 lb |
| Operating Voltage | 24 V |
| Engine Oil Fluid Capacity | 6.7 gal |
| Rear Axle Oscillation | 26 ° |
| Alternator Supplied Amperage | 60 A |
| Front Axle/Diff Fluid Capacity | 9.3 gal |
| Rear Axle/Diff Fluid Capacity | 10.1 gal |
| Cooling System Fluid Capacity | 17.2 gal |
| Transmission Fluid Capacity | 8.8 gal |
Engine
| Engine Model | TD 71 G |
|---|---|
| Displacement | 409 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 200.0 hp |
| Net Power | 190.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,400 rpm |
Hydraulic System
| Pump Flow Capacity | 51.8 gal/min |
|---|---|
| Raise Time | 6.5 s |
| Lower Time | 3.1 s |
| Dump Time | 1.5 s |
| Relief Valve Setting | 3,050 psi |
| Pump Type | open center |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 132 in |
| Wheelbase | 126 in |
| Width Over Tires | 106 in |
| Reach at Max Lift and Dump | 43 in |
| Length with Bucket on Ground | 300 in |
| Hinge Pin - Max Height | 157 in |
Transmission
| Max Speed - Forward | 24.0 mph |
|---|---|
| Max Speed - Reverse | 16.8 mph |
| Transmission Type | powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.70 yd³ |
|---|---|
| Dump Clearance at Max Raise | 114 in |
| Breakout Force | 34,330 lb |
| Bucket Width | 113 in |
General
| Bucket Capacity | 3.92 – 12.43 yd³ |
|---|---|
| Static tipping load at full turn | 27,557 lb |
