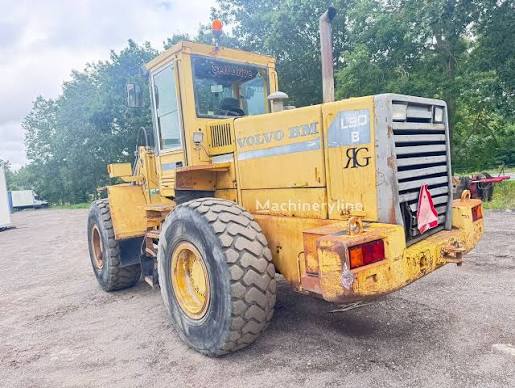

Volvo
BM L90B
- Operating Weight
- 27,785 lb
- Bucket Capacity - heaped
- 2.80 yd³
- Gross Power
- 115.0 hp
- Net Power
- 109.0 hp
1 / 5
Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 27,785 lb |
|---|---|
| Fuel Capacity | 55.5 gal |
| Tire Size | 20.5R25 |
| Hydraulic System Fluid Capacity | 34.4 gal |
| Static Tipping Weight | 20,944 lb |
| Operating Voltage | 24 V |
| Engine Oil Fluid Capacity | 4.5 gal |
| Rear Axle Oscillation | 30 ° |
| Alternator Supplied Amperage | 60 A |
| Front Axle/Diff Fluid Capacity | 8.6 gal |
| Rear Axle/Diff Fluid Capacity | 7.8 gal |
| Cooling System Fluid Capacity | 14.1 gal |
| Transmission Fluid Capacity | 8.8 gal |
Engine
| Engine Model | TD 61 GB |
|---|---|
| Displacement | 335 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 115.0 hp |
| Net Power | 109.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,400 rpm |
Hydraulic System
| Pump Flow Capacity | 53.4 gal/min |
|---|---|
| Raise Time | 6.5 s |
| Lower Time | 3.0 s |
| Dump Time | 1.5 s |
| Relief Valve Setting | 2,975 psi |
| Pump Type | open center system |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 126 in |
| Wheelbase | 119 in |
| Width Over Tires | 98 in |
| Reach at Max Lift and Dump | 42 in |
| Length with Bucket on Ground | 284 in |
| Hinge Pin - Max Height | 150 in |
Transmission
| Max Speed - Forward | 24.7 mph |
|---|---|
| Max Speed - Reverse | 17.8 mph |
| Transmission Type | powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 2.80 yd³ |
|---|---|
| Dump Clearance at Max Raise | 111 in |
| Breakout Force | 27,130 lb |
| Bucket Width | 104 in |
