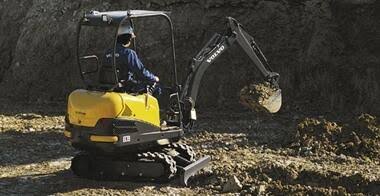

8010 CTS
Mini Excavator
34 specifications
1 / 5
Image 1 of 5
Specifications
44 data points
Operating Specifications
| Operating Weight | 2,774 lb |
|---|---|
| Fuel Capacity | 4.8 gal |
| Hydraulic Pump Flow Capacity | 8.2 gal/min |
| Hydraulic System Fluid Capacity | 4.7 gal |
| Hydraulic System Relief Valve Pressure | 2,466 psi |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 A |
| Engine Oil Capacity | 1.0 gal |
| Cooling System Fluid Capacity | 1.4 gal |
Engine
| Engine Model | L3E2 |
|---|---|
| Displacement | 58 in³ |
| Power Measured @ | 2,800 rpm |
| Gross Power | 19.0 hp |
| Net Power | 15.0 hp |
| Aspiration | natural |
| Torque Measured @ | 1,800 rpm |
| Max Torque | 37 lb-ft |
Dimensions
| Height - Top of Cab | 90 in |
|---|---|
| Length of Track on Ground | 43 in |
| Tail Swing Radius | 41 in |
| Width to Outside of Tracks | 39 in |
| Removal Counterweight Clearance | 18 in |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Track Gauge | 39 in |
| Max Travel Speed | 1.3 mph |
| Shoe Size | 8 in |
Boom/Stick Excavator Option 1
| Max Digging Depth | 83 in |
|---|---|
| Max Reach Along Ground | 143 in |
| Max Vertical Wall Digging Depth | 62 in |
| Max Loading Height | 91 in |
| Shipping Length of Unit | 131 in |
| Max Cutting Height | 130 in |
| Shipping Height of Unit | 90 in |
Bucket
| Reference Bucket Capacity | 0.10 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.10 yd³ |
| Minimum Bucket Capacity | 0.10 yd³ |
Swing Mechanism
| Swing Speed | 9 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 89 in |
|---|---|
| Max Cutting Height | 134 in |
| Max Loading Height | 96 in |
| Max Vertical Wall Digging Depth | 69 in |
| Max Reach Along Ground | 148 in |
| Shipping Height of Unit | 90 in |
| Shipping Length of Unit | 131 in |
