Volvo

EC14

Mini Excavator

Operating Weight
3,373 lb
Max Digging Depth
80 in
Gross Power
18.8 hp
Net Power
15.2 hp
All mini excavators

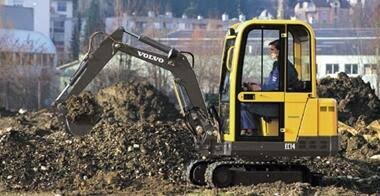

Volvo EC14 Mini Excavator
1 / 5
Image 1 of 5
Image: zzcarstar.en.made-in-china.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,373 lb
Fuel Capacity5.6 gal
Hydraulic Pump Flow Capacity8.5 gal/min
Hydraulic System Fluid Capacity9.6 gal
Hydraulic System Relief Valve Pressure2,321 psi
Operating Voltage12 V
Alternator Supplied Amperage40 A
Engine Oil Capacity1.0 gal
Cooling System Fluid Capacity1.2 gal

Engine

Engine specifications
Engine ModelL3E
Displacement58 in³
Power Measured @2,200 rpm
Gross Power18.8 hp
Net Power15.2 hp
Number of Cylinders3
Torque Measured @1,850 rpm
Max Torque40 lb-ft

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab86 in
Length of Track on Ground42 in
Tail Swing Radius43 in
Width to Outside of Tracks40 in
Removal Counterweight Clearance19 in

Undercarriage

Undercarriage specifications
Track Gauge30 in
Max Travel Speed1.3 mph
Shoe Size9 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth80 in
Max Reach Along Ground135 in
Max Vertical Wall Digging Depth43 in
Max Loading Height89 in
Shipping Length of Unit134 in
Max Cutting Height121 in
Shipping Height of Unit86 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³
Maximum Bucket Capacity0.10 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth86 in
Max Cutting Height125 in
Max Loading Height93 in
Max Vertical Wall Digging Depth79 in
Max Reach Along Ground141 in
Shipping Height of Unit86 in
Shipping Length of Unit134 in
