Volvo

EC180BLC

Excavator

Operating Weight
39,904 lb
Max Digging Depth
226 in
Max Digging Depth
238 in
Net Power
109.0 hp
All excavators

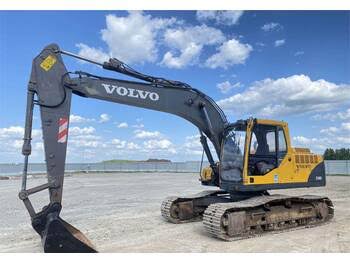

Volvo EC180BLC Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

75 data points

Operating Specifications

Operating Specifications specifications
Operating Weight39,904 lb
Fuel Capacity68.7 gal
Hydraulic Pump Flow Capacity76.7 gal/min
Hydraulic System Fluid Capacity64.8 gal
Hydraulic System Relief Valve Pressure4,975 psi
Engine Oil Capacity6.7 gal
Cooling System Fluid Capacity5.9 gal
Operating Voltage24 V
Swing Drive Fluid Capacity0.7 gal
Alternator Supplied Amperage80 A

Engine

Engine specifications
Engine ModelD6D EHE2
Displacement348 in³
Power Measured @1,900 rpm
Gross Power121.0 hp
Net Power109.0 hp
AspirationTurbocharged
Torque Measured @1,450 rpm
Max Torque400 lb-ft

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab117 in
Length of Track on Ground133 in
Tail Swing Radius97 in
Width to Outside of Tracks110 in
Removal Counterweight Clearance42 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge88 in
Number of Track Rollers per Side7
Max Travel Speed3.3 mph
Shoe Size24 in
Number of Shoes per Side46
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth226 in
Max Reach Along Ground335 in
Max Loading Height243 in
Max Vertical Wall Digging Depth159 in
Max Cutting Height337 in
Shipping Length of Unit347 in
Shipping Height of Unit117 in

Bucket

Bucket specifications
Reference Bucket Capacity0.80 yd³
Maximum Bucket Capacity1.90 yd³
Minimum Bucket Capacity0.80 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth238 in
Max Vertical Wall Digging Depth178 in
Max Cutting Height348 in
Max Loading Height251 in
Max Reach Along Ground347 in
Shipping Length of Unit336 in
Shipping Height of Unit117 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth253 in
Max Cutting Height356 in
Max Loading Height259 in
Max Vertical Wall Digging Depth194 in
Max Reach Along Ground362 in
Shipping Length of Unit336 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth204 in
Max Cutting Height376 in
Max Reach Along Ground330 in
Max Loading Height275 in
Max Vertical Wall Dig Depth159 in
Shipping Length of Unit340 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth217 in
Max Reach Along Ground343 in
Max Cutting Height389 in
Max Loading Height285 in
Max Vertical Wall Dig Depth174 in
Shipping Height of Unit117 in
Shipping Length of Unit336 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth228 in
Max Reach Along Ground357 in
Max Cutting Height401 in
Max Loading Height298 in
Max Vertical Wall Dig Depth190 in
Shipping Length of Unit336 in
Shipping Height of Unit118 in
