Volvo
Komatsu
PC20R-8
Mini Excavator
47 specifications
1 / 5

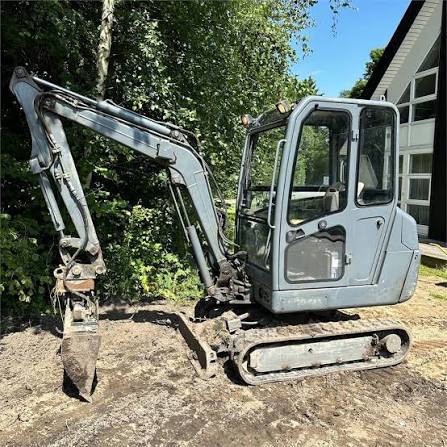

Image 1 of 5
Specifications
44 data points
Operating Specifications
| Operating Weight | 4,134 lb |
|---|---|
| Fuel Capacity | 5.6 gal |
| Hydraulic Pump Flow Capacity | 11.4 gal/min |
| Hydraulic System Fluid Capacity | 6.1 gal |
| Hydraulic System Relief Valve Pressure | 3,045 psi |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 A |
| Engine Oil Capacity | 1.0 gal |
| Cooling System Fluid Capacity | 1.2 gal |
Engine
| Engine Model | L3E |
|---|---|
| Displacement | 58 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 15.2 hp |
| Number of Cylinders | 3 |
| Aspiration | Natural |
| Torque Measured @ | 1,850 rpm |
| Max Torque | 40 lb-ft |
Dimensions
| Height - Top of Cab | 90 in |
|---|---|
| Length of Track on Ground | 49 in |
| Tail Swing Radius | 47 in |
| Width to Outside of Tracks | 54 in |
| Removal Counterweight Clearance | 19 in |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Track Gauge | 40 in |
| Max Travel Speed | 2.9 mph |
| Shoe Size | 10 in |
Boom/Stick Excavator Option 1
| Max Digging Depth | 94 in |
|---|---|
| Max Reach Along Ground | 158 in |
| Max Vertical Wall Digging Depth | 62 in |
| Max Loading Height | 106 in |
| Shipping Length of Unit | 150 in |
| Max Cutting Height | 149 in |
| Shipping Height of Unit | 90 in |
Bucket
| Reference Bucket Capacity | 0.10 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.20 yd³ |
| Minimum Bucket Capacity | 0.10 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 103 in |
|---|---|
| Max Cutting Height | 154 in |
| Max Loading Height | 111 in |
| Max Vertical Wall Digging Depth | 72 in |
| Max Reach Along Ground | 168 in |
| Shipping Height of Unit | 90 in |
| Shipping Length of Unit | 150 in |
