Volvo

EC35D

Mini Excavator

Net Power
24.8 hp
All mini excavators

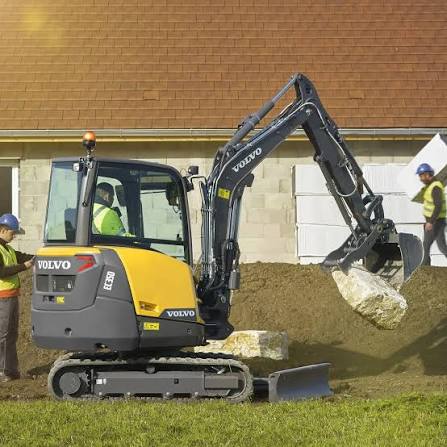

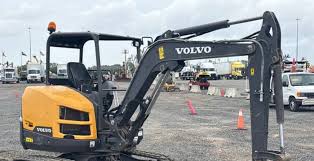

Volvo EC35D Mini Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

43 data points

Engine

Engine specifications
Engine ModelD1.7A
Displacement1,650 in³
Net Power24.8 hp
Number of Cylinders3
Max Torque72 lb-ft
Stroke4 in
Bore4 in
Max Power—
Rated Engine Speed1,600 rpm

Dimensions

Dimensions specifications
Overall Length189 in
Tail Swing Radius62 in
Shoe width12 in
Track length81 in

Undercarriage

Undercarriage specifications
Drawbar Pull696,908 lb
Number of bottom rollers per side4
Number of top rollers per side1
Shoe Width - Steel300
Shoe width - rubber12 in

Fluid Capacities

Fluid Capacities specifications
Engine Oil1.9 gal
Hydraulic Tank8.5 gal
Engine coolant1.9 gal
Travel reduction0.4 gal
Hydraulic tank - Total system16.4 gal

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Reach Along Ground215 in
Max Vertical Wall Digging Depth100 in
Max Cutting Height185 in
Max.Dumping Height132 in
Max Digging Reach204 in
Max Digging Reach on Ground199 in

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³

Loader

Loader specifications
Breakout Force—

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth144 in
Max Cutting Height192 in
Max Vertical Wall Digging Depth111 in
Max.Dumping Height139 in
Max Digging Reach215 in
Max Digging Reach on Ground210 in

Electrical System

Electrical System specifications
Battery capacity74 Ah
Voltage12 V
Battery1X 12 V

Performance

Performance specifications
Travel speed low2.7 mph
Gradeability20.0 %
Travel Speed - High4.5 mph
