Volvo

EC45

Mini Excavator

Operating Weight
9,370 lb
Max Digging Depth
139 in
Gross Power
41.6 hp
Net Power
36.5 hp
All mini excavators

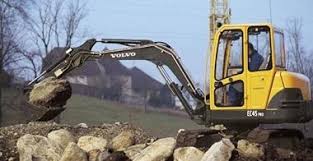

Volvo EC45 Mini Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

47 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,370 lb
Fuel Capacity17.5 gal
Hydraulic Pump Flow Capacity26.2 gal/min
Hydraulic System Fluid Capacity16.4 gal
Hydraulic System Relief Valve Pressure3,771 psi
Operating Voltage12 V
Alternator Supplied Amperage40 A
Engine Oil Capacity2.1 gal
Cooling System Fluid Capacity2.2 gal

Engine

Engine specifications
Engine ModelK4N
Displacement140 in³
Power Measured @2,000 rpm
Gross Power41.6 hp
Net Power36.5 hp
Number of Cylinders4
Torque Measured @1,400 rpm
Max Torque101 lb-ft

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab100 in
Length of Track on Ground71 in
Tail Swing Radius55 in
Width to Outside of Tracks72 in
Removal Counterweight Clearance26 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge55 in
Number of Track Rollers per Side4
Max Travel Speed2.7 mph
Shoe Size16 in
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth139 in
Max Reach Along Ground209 in
Max Vertical Wall Digging Depth91 in
Max Loading Height144 in
Shipping Length of Unit194 in
Max Cutting Height194 in
Shipping Height of Unit100 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
Maximum Bucket Capacity0.20 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth150 in
Max Cutting Height202 in
Max Loading Height150 in
Max Vertical Wall Digging Depth101 in
Max Reach Along Ground220 in
Shipping Height of Unit100 in
Shipping Length of Unit194 in
