Volvo

ECR88B

Mini Excavator

Operating Weight
18,739 lb
Max Digging Depth
180 in
Net Power
57.7 hp
All mini excavators

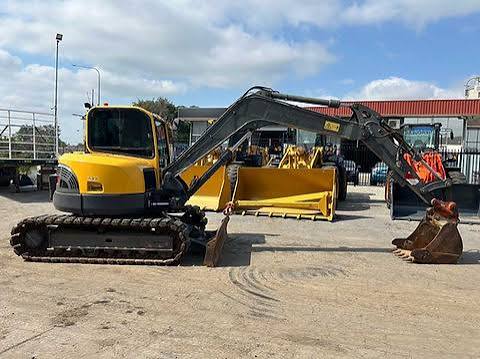

Volvo ECR88B Mini Excavator
1 / 5
Image 1 of 5
Image: volvoce.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight18,739 lb
Hydraulic Pump Flow Capacity46.0 gal/min
Hydraulic System Relief Valve Pressure4,786 psi

Engine

Engine specifications
Engine ModelD3.4
Displacement183 in³
Power Measured @2,100 rpm
Net Power57.7 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance16 in
Tail Swing Radius48 in
Width to Outside of Tracks91 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.2 mph
Shoe Size18 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth180 in
Max Reach Along Ground285 in
Max Vertical Wall Digging Depth128 in
Max Loading Height202 in
Shipping Length of Unit253 in
Shipping Height of Unit106 in

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³
