Volvo
Tata Hitachi

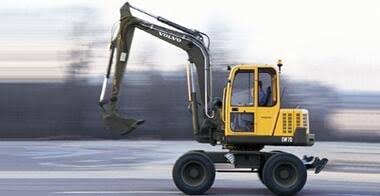

EX70
Excavator
39 specifications
1 / 5
Image 1 of 5
Specifications
60 data points
Operating Specifications
| Operating Weight | 15,984 lb |
|---|---|
| Fuel Capacity | 29.1 gal |
| Hydraulic Pump Flow Capacity | 15.9 gal/min |
| Hydraulic System Fluid Capacity | 19.3 gal |
| Hydraulic System Relief Valve Pressure | 3,626 psi |
| Engine Oil Capacity | 2.7 gal |
| Cooling System Fluid Capacity | 4.0 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 50 A |
| Hydraulic Pump Type | gear pump |
| Tire Size | 8.25x20 |
Engine
| Engine Model | S4S |
|---|---|
| Displacement | 203 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 55.3 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,550 rpm |
| Net Torque | 145 lb-ft |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 118 in |
| Wheelbase | 81 in |
| Overall Width | 8 in |
| Tail Swing Radius | 64 in |
| Upper Structure Clearance | 44 in |
Transmission
| Max Travel Speed | 12.8 mph |
|---|---|
| Transmission Type | Hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Reference Bucket Capacity | 0.30 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.41 yd³ |
| Minimum Bucket Capacity | 0.20 yd³ |
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Mobile Excavator Option 1
| Max Digging Depth | 142 in |
|---|---|
| Max Cutting Height | 264 in |
| Max Reach Along Ground | 251 in |
| Max Loading Height | 196 in |
| Shipping Length of Unit | 233 in |
| Shipping Height of Unit | 118 in |
| Max Vertical Wall Dig Depth | 77 in |
Boom/Stick Mobile Excavator Option 2
| Max Digging Depth | 157 in |
|---|---|
| Max Cutting Height | 275 in |
| Max Reach Along Ground | 268 in |
| Max Loading Height | 206 in |
| Shipping Height of Unit | 118 in |
| Shipping Length of Unit | 233 in |
| Max Vertical Wall Dig Depth | 90 in |
Boom/Stick Mobile Excavator Option 3
| Max Digging Depth | 142 in |
|---|---|
| Max Cutting Height | 300 in |
| Max Reach Along Ground | 267 in |
| Max Loading Height | 224 in |
| Shipping Height of Unit | 118 in |
| Shipping Length of Unit | 244 in |
| Max Vertical Wall Dig Depth | 114 in |
Boom/Stick Mobile Excavator Option 4
| Max Digging Depth | 157 in |
|---|---|
| Max Cutting Height | 315 in |
| Max Reach Along Ground | 282 in |
| Max Loading Height | 239 in |
| Shipping Height of Unit | 118 in |
| Shipping Length of Unit | 244 in |
| Max Vertical Wall Dig Depth | 127 in |
