GD500R-2
Motor Grader
33 specifications
1 / 5
Image 1 of 5
Specifications
54 data points
Operating Specifications
| Std Operation Weight - Total | 33,400 lb |
|---|---|
| Tire Size | 13.00 x 24 G-2 |
| Fuel Capacity | 100.0 gal |
| Std Operation Weight - Front Axle | 9,687 lb |
| Std Operation Weight - Rear Axle | 23,715 lb |
| Hydraulic System Fluid Capacity | 35.4 gal |
| Tandem Case Fluid Capacity (each) | 26.5 gal |
| Operating Voltage | 24 V |
| Cooling System Fluid Capacity | 12.5 gal |
| Alternator Supplied Amperage | 75 A |
| Transmission Fluid Capacity | 10.1 gal |
| Rear Diff/Final Drive Fluid Capacity | 6.1 gal |
Engine
| Engine Model | D7DGAE2 |
|---|---|
| Displacement | 436 in³ |
| Power Measured @ | 2,200 rpm |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,400 rpm |
| Max Power | 173.0 hp |
| Net Power Gears 7-8 | 173.0 hp |
| Net Torque Gears 7-8 | 591 lb-ft |
Hydraulic System
| Pump Flow | 75.1 gal/min |
|---|---|
| Pump Type | load sensing hydraulic |
| Relief Valve Pressure | 2,700 psi |
Dimensions
| Wheelbase | 240 in |
|---|---|
| Overall Length | 359 in |
| Width Over Tires | 98 in |
| Height to Top of Isomount Cab | 121 in |
| Blade Base | 103 in |
Transmission
| Max Speed - Forward | 24.9 mph |
|---|---|
| Max Speed - Reverse | 17.8 mph |
| Number of Gears - Forward | 8 |
| Number of Gears - Reverse | 4 |
| Transmission Type | Powershift |
Moldboard
| Moldboard Height | 25 in |
|---|---|
| Moldboard Width | 144 in |
| Moldboard Thickness | 1 in |
| Side Shift Left | 27 in |
| Side Shift Right | 27 in |
| Max Depth of Cut | 32 in |
| Blade Pull at Max Weight | 20,157 lb |
| Blade Down Pressure | 16,968 lb |
Circle
| Max Lift Above Ground | 17 in |
|---|---|
| Max Reach Outside Tires - Left | 80 in |
| Max Reach Outside Tires - Right | 81 in |
| Diameter | 66 in |
| Blade Tip Angle - Front | 47 ° |
| Rotation | 360 ° |
| Blade Tip Angle - Rear | 5 ° |
| Shift Left | 31 in |
| Shift Right | 30 in |
Front Axle
| Wheel Lean | 18 ° |
|---|---|
| Oscillation - Total | 16 ° |
| Ground Clearance | 24 in |
Steering System
| Articulation Angle | 22 ° |
|---|

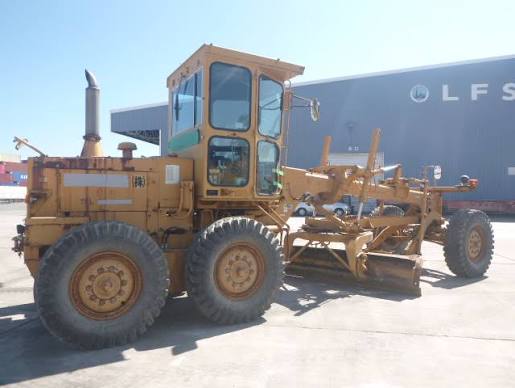

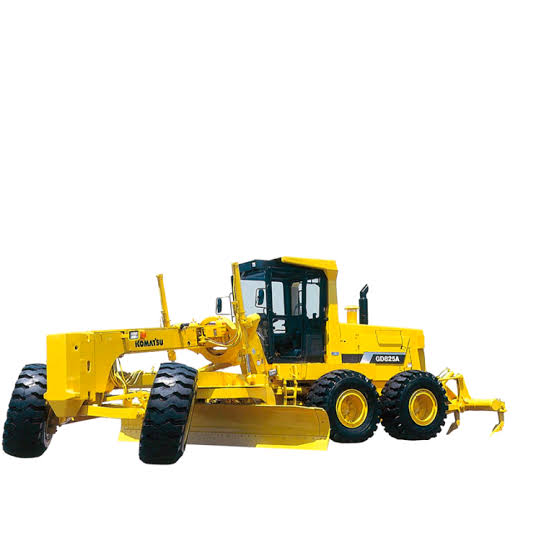

Comparable machines
