Volvo

G730

Motor Grader

Max Power
205.0 hp
Net Power Gears 7-8
205.0 hp
All motor graders

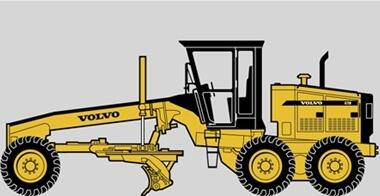

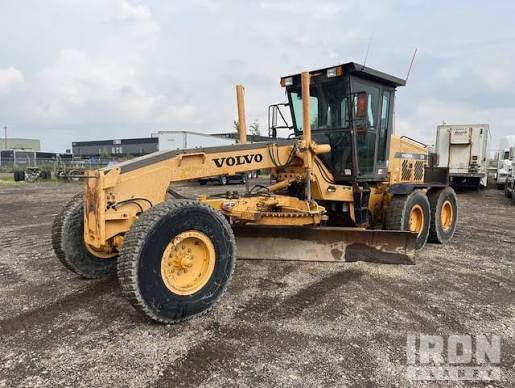

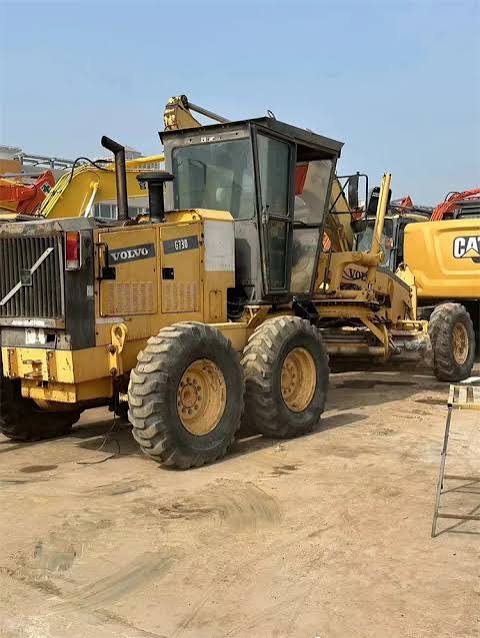

Volvo G730 Motor Grader
1 / 5
Image 1 of 5
Image: volvoce.com

Specifications

52 data points

Operating Specifications

Operating Specifications specifications
Std Operation Weight - Total34,751 lb
Tire Size14.00 x 24 G-2
Fuel Capacity100.0 gal
Std Operation Weight - Front Axle10,595 lb
Std Operation Weight - Rear Axle24,156 lb
Hydraulic System Fluid Capacity23.8 gal
Tandem Case Fluid Capacity (each)26.5 gal
Operating Voltage24 V
Cooling System Fluid Capacity12.5 gal
Alternator Supplied Amperage75 A
Transmission Fluid Capacity10.1 gal
Rear Diff/Final Drive Fluid Capacity6.1 gal

Engine

Engine specifications
Engine Model6C8.3
Displacement505 in³
AspirationTurbocharged
Max Power205.0 hp
Net Power Gears 7-8205.0 hp
Net Torque Gears 7-8636 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow50.5 gal/min
Pump Typeload sensing hydraulic
Relief Valve Pressure2,500 psi

Dimensions

Dimensions specifications
Wheelbase240 in
Overall Length335 in
Width Over Tires101 in
Height to Top of Isomount Cab122 in
Blade Base103 in

Transmission

Transmission specifications
Max Speed - Forward28.5 mph
Max Speed - Reverse20.4 mph
Number of Gears - Forward8
Number of Gears - Reverse4
Transmission TypePowershift

Moldboard

Moldboard specifications
Moldboard Height25 in
Moldboard Width144 in
Moldboard Thickness1 in
Side Shift Left27 in
Side Shift Right27 in
Max Depth of Cut32 in
Blade Pull at Max Weight21,736 lb
Blade Down Pressure18,426 lb

Circle

Circle specifications
Max Lift Above Ground18 in
Max Reach Outside Tires - Left80 in
Max Reach Outside Tires - Right79 in
Diameter66 in
Blade Tip Angle - Front44 °
Rotation360 °
Blade Tip Angle - Rear7 °
Shift Left31 in
Shift Right30 in

Front Axle

Front Axle specifications
Wheel Lean18 °
Oscillation - Total16 °
Ground Clearance25 in

Steering System

Steering System specifications
Articulation Angle22 °
