Volvo

G80

Motor Grader

Max Power
85.0 hp
Net Power Gears 7-8
85.0 hp
All motor graders

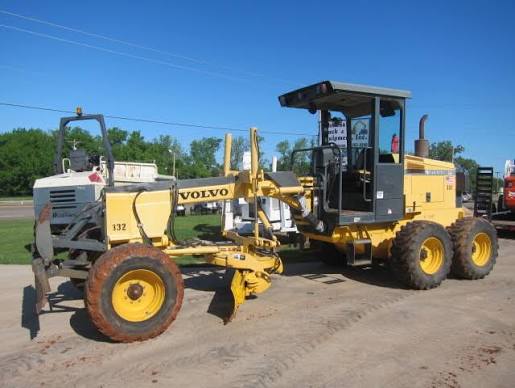

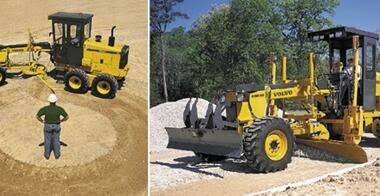

Volvo G80 Motor Grader
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Std Operation Weight - Total14,992 lb
Tire Size15X19.5 TL G-2
Fuel Capacity39.1 gal
Std Operation Weight - Front Axle5,005 lb
Std Operation Weight - Rear Axle9,987 lb
Hydraulic System Fluid Capacity30.2 gal
Tandem Case Fluid Capacity (each)18.0 gal
Cooling System Fluid Capacity4.5 gal
Rear Diff/Final Drive Fluid Capacity4.5 gal

Engine

Engine specifications
Engine Model4B3.9
Displacement239 in³
Power Measured @2,500 rpm
Number of Cylinders4
Max Power85.0 hp
Net Power Gears 7-885.0 hp
Net Power Gear 1-285.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow24.1 gal/min
Pump Typesingle flow
Relief Valve Pressure1,800 psi

Dimensions

Dimensions specifications
Wheelbase185 in
Overall Length251 in
Width Over Tires94 in
Blade Base74 in

Transmission

Transmission specifications
Max Speed - Forward19.9 mph
Max Speed - Reverse19.9 mph
Transmission Typehydrostatic

Moldboard

Moldboard specifications
Moldboard Height19 in
Moldboard Width120 in
Moldboard Thickness1 in
Side Shift Left58 in
Side Shift Right58 in
Max Depth of Cut8 in

Circle

Circle specifications
Diameter39 in
Rotation120 °

Front Axle

Front Axle specifications
Wheel Lean15 °
Oscillation - Total35 °
Ground Clearance17 in

Steering System

Steering System specifications
Turning Radius198 in
