Volvo

L120F

Wheel Loader

Operating Weight
41,844 lb
Bucket Capacity - heaped
4.00 yd³
Gross Power
241.4 hp
Net Power
240.1 hp
All wheel loaders

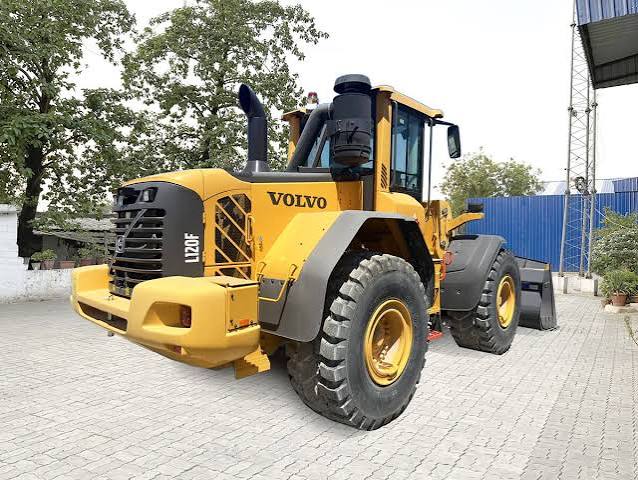

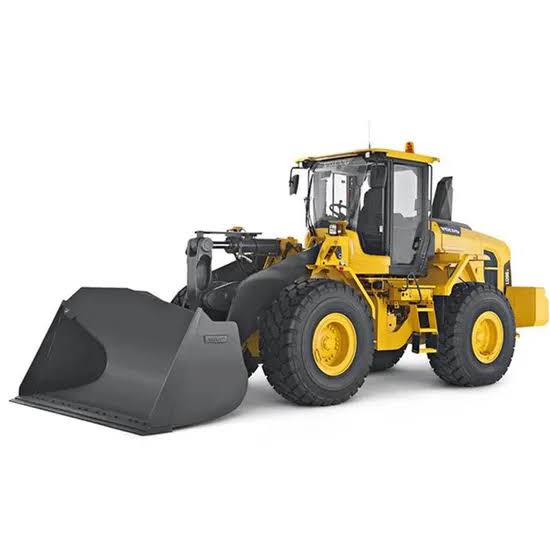

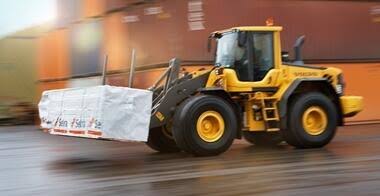

Volvo L120F Wheel Loader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight41,844 lb
Fuel Capacity71.1 gal
Tire Size23.5R25
Hydraulic System Fluid Capacity35.2 gal
Static Tipping Weight32,055 lb
Operating Voltage24 V
Turning Radius252 in
Engine Oil Fluid Capacity5.6 gal
Rear Axle Oscillation13 °
Alternator Supplied Amperage80 A
Front Axle/Diff Fluid Capacity9.6 gal
Rear Axle/Diff Fluid Capacity10.9 gal
Cooling System Fluid Capacity18.5 gal
Transmission Fluid Capacity10.1 gal
Rated Bucket Capacity3.40 – 12.40 yd³

Engine

Engine specifications
Engine ModelD7ELAE3
Displacement433 in³
Power Measured @1,700 rpm
Gross Power241.4 hp
Net Power240.1 hp
Number of Cylinders6
AspirationTurbocharged with Intercooler
Torque Measured @1,500 rpm
MakeVolvo

Weights

Weights specifications
Operating Weight42,340 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity38.4 gal/min
Raise Time5.4 s
Lower Time2.5 s
Dump Time2.1 s
Relief Valve Setting3,630 psi

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab133 in
Wheelbase126 in
Width Over Tires106 in
Reach at Max Lift and Dump53 in
Length with Bucket on Ground324 in
Hinge Pin - Max Height162 in

Transmission

Transmission specifications
Max Speed - Forward23.0 mph
Max Speed - Reverse23.0 mph
Transmission TypeAutomatic Powershift
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Bucket Capacity - heaped4.00 yd³
Dump Clearance at Max Raise110 in
Bucket Width114 in
