Komatsu

WA200-7

Wheel Loader

Operating Weight
25,342 lb
Gross Power
128.0 hp
Net Power
126.0 hp
All wheel loaders

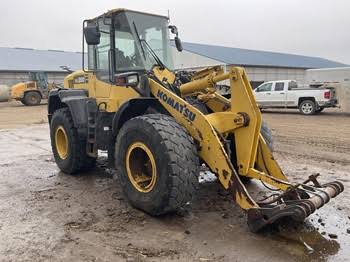

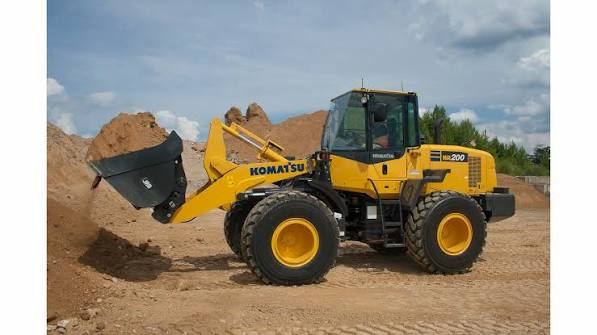

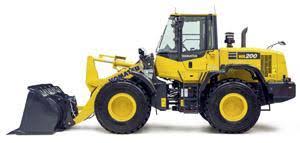

Komatsu WA200-7 Wheel Loader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

50 data points

Operating Specifications

Operating Specifications specifications
Operating Weight25,342 lb
Fuel Capacity46.8 gal
Tire Size20.5 R25
Hydraulic System Fluid Capacity15.4 gal
Operating Voltage24 V
Turning Radius193 in
Engine Oil Fluid Capacity4.1 gal
Alternator Supplied Amperage60 A
Front Axle/Diff Fluid Capacity4.9 gal
Rear Axle/Diff Fluid Capacity4.8 gal
Cooling System Fluid Capacity6.5 gal
Transmission Fluid Capacity1.4 gal
Rated Bucket Capacity2.60 yd³

Engine

Engine specifications
Engine ModelSAA4D107E-2
Displacement272 in³
Power Measured @2,000 rpm
Gross Power128.0 hp
Net Power126.0 hp
Number of Cylinders4
AspirationTurbocharged
Engine MakeKomatsu
Bore4 in
Stroke5 in
Emissions CertificationIIIB/EPA Tier 4 interim

Weights

Weights specifications
Operating Weight25,320 – 26,070 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity22.5 gal/min
Raise Time5.7 s
Lower Time3.2 s
Dump Time1.9 s
Relief Valve Setting2,988 psi
Pump TypeGear type pump

Dimensions

Dimensions specifications
Ground Clearance20 in
Wheelbase113 in
Width Over Tires98 in
Reach at Max Lift and Dump39 in
Length with Bucket on Ground280 in
Hinge Pin - Max Height154 in

Transmission

Transmission specifications
Max Speed - Forward23.7 mph
Max Speed - Reverse23.7 mph
Transmission TypeElectronically controlled hydrostatic transmission
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Dump Clearance at Max Raise118 in
Breakout Force24,250 lb
Bucket Width101 in

General Specifications

General Specifications specifications
Operating Weight25,199 - 26,070 (11,430 - 11,825) — Starting 2016 Model Year
Bucket Capacity2.2 - 3.1 (1.7 - 2.4) — Starting 2016 Model Year
Engine typeSAA4D107E-2 — Starting 2016 Model Year
Engine Power126 (94) — Starting 2016 Model Year
Max Dump Height9.8 (3.0) — Starting 2016 Model Year
