Volvo
L150C
- Operating Weight
- 56,879 lb
- Bucket Capacity - heaped
- 5.21 yd³
- Gross Power
- 257.0 hp
- Net Power
- 249.0 hp
1 / 5

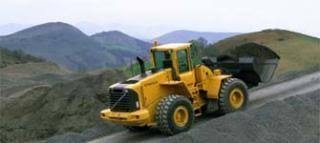

Image 1 of 5
Specifications
44 data points
Operating Specifications
| Operating Weight | 56,879 lb |
|---|---|
| Fuel Capacity | 84.1 gal |
| Tire Size | 26.5R25*L3 |
| Hydraulic System Fluid Capacity | 43.6 gal |
| Static Tipping Weight | 36,640 lb |
| Operating Voltage | 24 V |
| Turning Radius | 292 in |
| Engine Oil Fluid Capacity | 7.2 gal |
| Rear Axle Oscillation | 30 ° |
| Alternator Supplied Amperage | 60 A |
| Front Axle/Diff Fluid Capacity | 14.6 gal |
| Rear Axle/Diff Fluid Capacity | 14.3 gal |
| Cooling System Fluid Capacity | 18.5 gal |
| Transmission Fluid Capacity | 9.3 gal |
Engine
| Engine Model | TD 103 KCE |
|---|---|
| Displacement | 586 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 257.0 hp |
| Net Power | 249.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,100 rpm |
Hydraulic System
| Pump Flow Capacity | 82.7 gal/min |
|---|---|
| Raise Time | 6.7 s |
| Lower Time | 3.2 s |
| Dump Time | 1.9 s |
| Relief Valve Setting | 3,046 psi |
| Pump Type | vane pump |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 141 in |
| Wheelbase | 141 in |
| Width Over Tires | 117 in |
| Reach at Max Lift and Dump | 49 in |
| Length with Bucket on Ground | 325 in |
| Hinge Pin - Max Height | 172 in |
Transmission
| Max Speed - Forward | 20.9 mph |
|---|---|
| Max Speed - Reverse | 14.3 mph |
| Transmission Type | automatic power shift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 5.21 yd³ |
|---|---|
| Dump Clearance at Max Raise | 120 in |
| Breakout Force | 39,630 lb |
| Bucket Width | 126 in |
