Specifications
58 data points
Operating Specifications
| Operating Weight | 70,967 lb |
|---|---|
| Fuel Capacity | 96.7 gal |
| Hydraulic System Fluid Capacity | 59.8 gal |
| Engine Oil Fluid Capacity | 13.3 gal |
| Cooling System Fluid Capacity | 14.6 gal |
| Transmission Fluid Capacity | 12.7 gal |
| Rated Bucket Capacity | 5.30 – 21.01 yd³ |
| DEF tank capacity | 8.2 gal |
Engine
| Engine Model | Volvo D13J |
|---|---|
| Displacement | 781 in³ |
| Power Measured @ | 1,400 rpm |
| Gross Power | 367.5 hp |
| Net Power | 366.1 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,100 rpm |
| Make | Volvo |
Weights
| Operating Weight | 62,000 – 71,000 lb |
|---|
Hydraulic System
| Working pressure | Pump 1 - 29 MPa Pump 2 - 31 MPa Pump 3 - 25 MPa |
|---|---|
| Engine speed | 1,900 rpm |
Dimensions
| Ground Clearance | 24 in |
|---|---|
| Height - Top of Cab | 148 in |
| Wheelbase | 146 in |
| Width Over Tires | 125 in |
| Reach at Max Lift and Dump | 62 in |
| Length with Bucket on Ground | 371 in |
| Hinge Pin - Max Height | 183 in |
Bucket
| Dump Clearance at Max Raise | 124 in |
|---|---|
| Breakout Force | 54,134 lb |
General Specifications
| Operating Weight | 71,140 (32,260) Starting 2024 Model Year |
|---|---|
| Bucket Capacity | 8.2 (6.3) Starting 2024 Model Year |
| Engine type | Volvo D13J (Tier 4F) Starting 2024 Model Year |
| Engine Power | 366 (273) Starting 2019 Model Year |
| Max Dump Height | 10 (3) Starting 2024 Model Year |
Drive System
| Transport speed, maximum | 22.7 mph |
|---|---|
| Torque multiplication, stall ratio | 2.02:1 |
| Transmission | Volvo HTL 310 |
Hydraulic cycle times (unloaded)
| Total cycle time | 11.6 s |
|---|---|
| Lift | 6.8 s |
| Lower | 3.2 s |
| Tilt | 1.6 s |
Steering System
| Articulation Angle | 37 ° |
|---|---|
| Maximum flow | 53.4 gal/min |
| Steering cylinders | 2 |
| Working pressure | 21 MPa 210 bar |
| Cylinder bore | 4 in |
| Rod diameter | 2 in |
| Stroke | 22 in |
Electrical System
| Voltage | 24 V |
|---|---|
| Battery capacity | — |
| Alternator rating | 2280/80 (W/A) |
| Starter motor output | 9.4 hp |
| Cold cranking capacity | 1000 A |
Axles
| Front | Volvo AWB 50 |
|---|---|
| Rear | Volvo AWB 41 |
| Axle oil front | 20.4 gal |
| Axle oil rear | 18.8 gal |
| Rear axle oscillation | 15 ° |

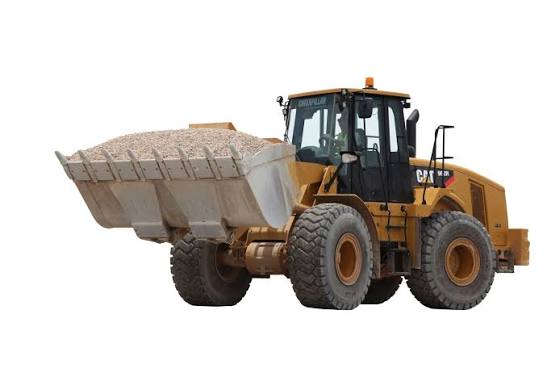

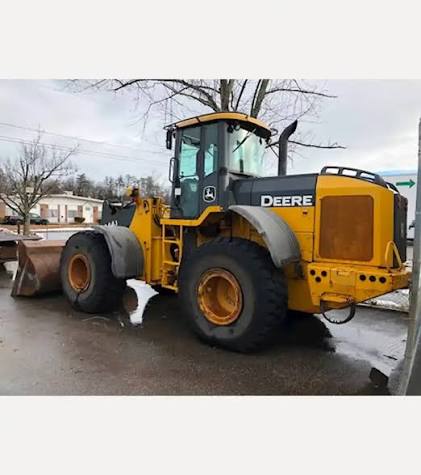

Comparable machines
