Volvo

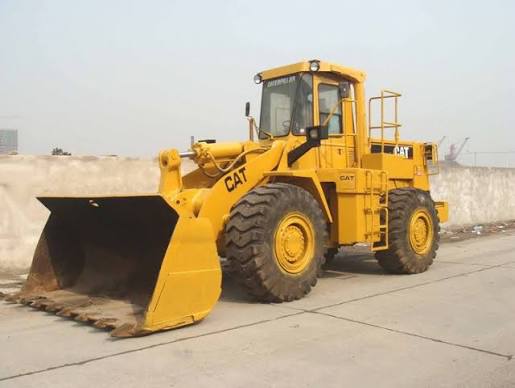

Caterpillar
966E
Wheel Loader
28 specifications
1 / 5
Image 1 of 5
Specifications
34 data points
Operating Specifications
| Operating Weight | 74,208 lb |
|---|---|
| Fuel Capacity | 88.5 gal |
| Tire Size | 29.5 R25 L4 |
| Hydraulic System Fluid Capacity | 59.8 gal |
| Engine Oil Fluid Capacity | 13.3 gal |
| Rear Axle Oscillation | 15 ° |
| Front Axle/Diff Fluid Capacity | 20.4 gal |
| Rear Axle/Diff Fluid Capacity | 18.8 gal |
| Transmission Fluid Capacity | 12.7 gal |
Engine
| Engine Model | D13H-E |
|---|---|
| Displacement | 781 in³ |
| Power Measured @ | 1,900 rpm |
| Gross Power | 390.0 hp |
| Number of Cylinders | 6 |
| Torque Measured @ | 1,100 rpm |
| Max Torque | 1,646 lb-ft |
| Emissions Certification | V-ACT Tier 4i |
Dimensions
| Ground Clearance | 22 in |
|---|---|
| Height - Top of Cab | 148 in |
| Wheelbase | 149 in |
| Width Over Tires | 125 in |
| Reach at Max Lift and Dump | 61 in |
| Length with Bucket on Ground | 365 in |
| Hinge Pin - Max Height | 182 in |
Transmission
| Max Speed - Forward | 23.6 mph |
|---|---|
| Transmission Type | Volvo HTL 307 |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Dump Clearance at Max Raise | 130 in |
|---|---|
| Breakout Force | 68,027 lb |
Electrical System
| Voltage | 24 V |
|---|---|
| Battery capacity | 340 Ah |
| Alternator rating | 2280/80 (W/A) |
| Starter motor output | 9.4 hp |
