Volvo
Gehl
540
Wheel Loader
25 specifications
1 / 5

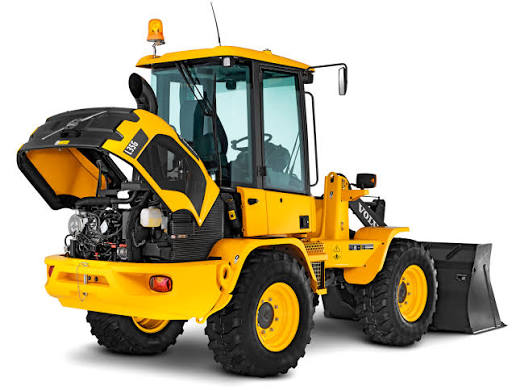

Image 1 of 5
Specifications
47 data points
Operating Specifications
| Operating Weight | 12,655 lb |
|---|---|
| Fuel Capacity | 22.8 gal |
| Tire Size | 405/70 R20 |
| Hydraulic System Fluid Capacity | 15.9 gal |
| Static Tipping Weight | 9,149 lb |
| Operating Voltage | 12 V |
| Turning Radius | 173 in |
| Engine Oil Fluid Capacity | 2.8 gal |
| Rear Axle Oscillation | 20 ° |
| Alternator Supplied Amperage | 80 A |
| Front Axle/Diff Fluid Capacity | 3.0 gal |
| Rear Axle/Diff Fluid Capacity | 3.2 gal |
Engine
| Engine Model | BF4L 1011F |
|---|---|
| Displacement | 167 in³ |
| Power Measured @ | 2,500 rpm |
| Gross Power | 73.0 hp |
| Net Power | 70.0 hp |
| Number of Cylinders | 4 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,800 rpm |
Hydraulic System
| Pump Flow Capacity | 18.5 gal/min |
|---|---|
| Raise Time | 6.0 s |
| Lower Time | 3.0 s |
| Dump Time | 1.6 s |
| Relief Valve Setting | 3,336 psi |
| Pump Type | gear type pump |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 108 in |
| Wheelbase | 85 in |
| Width Over Tires | 77 in |
| Reach at Max Lift and Dump | 32 in |
| Length with Bucket on Ground | 214 in |
| Hinge Pin - Max Height | 131 in |
Transmission
| Max Speed - Forward | 18.7 mph |
|---|---|
| Max Speed - Reverse | 18.7 mph |
| Transmission Type | hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 1.60 yd³ |
|---|---|
| Dump Clearance at Max Raise | 101 in |
| Bucket Width | 79 in |
General Specifications
| Operating Weight lbs (kg) | 13,448 (6,100) — Starting 2025 Model Year |
|---|---|
| Bucket Capacity cu. yd. (cu m) | 1.6-2 (1.2-1.5) — Starting 2026 Model Year |
| Engine type | Volvo D3.3H — Starting 2025 Model Year |
| Max Dump Height ft.( m) | 8.8 (2.7) — Starting 2025 Model Year |
| OperatingWeight lbs. (kg) | 13,558-13,999 (6,150-6,350) — Starting 2026 Model Year |
| Engine Power Net hp (kW) | 74 (55) — Starting 2025 Model Year |
