Volvo

L45B

Wheel Loader

Operating Weight
18,519 lb
Bucket Capacity - heaped
1.80 yd³
Gross Power
97.0 hp
Net Power
94.0 hp
All wheel loaders

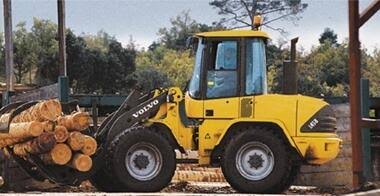

Volvo L45B Wheel Loader
1 / 5
Image 1 of 5
Image: industry-plaza.com

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Operating Weight18,519 lb
Fuel Capacity34.3 gal
Tire Size15.5-25
Hydraulic System Fluid Capacity31.7 gal
Static Tipping Weight13,007 lb
Operating Voltage24 V
Turning Radius90 in
Engine Oil Fluid Capacity3.7 gal
Rear Axle Oscillation20 °
Alternator Supplied Amperage55 A
Front Axle/Diff Fluid Capacity2.0 gal
Rear Axle/Diff Fluid Capacity2.6 gal

Engine

Engine specifications
Engine ModelD5DCBE2
Displacement291 in³
Power Measured @2,100 rpm
Gross Power97.0 hp
Net Power94.0 hp
Number of Cylinders4
AspirationTurbocharged
Torque Measured @1,400 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity28.0 gal/min
Raise Time6.0 s
Lower Time5.0 s
Dump Time1.5 s
Relief Valve Setting3,616 psi
Pump TypeAxial piston pump

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab115 in
Wheelbase96 in
Width Over Tires85 in
Reach at Max Lift and Dump36 in
Length with Bucket on Ground240 in
Hinge Pin - Max Height144 in

Transmission

Transmission specifications
Max Speed - Forward12.4 mph
Max Speed - Reverse12.4 mph
Transmission TypeHydrostatic
Number of Forward Gears2
Number of Reverse Gears2

Bucket

Bucket specifications
Bucket Capacity - heaped1.80 yd³
Dump Clearance at Max Raise110 in
Breakout Force13,938 lb
Bucket Width90 in
