Volvo

L45G

Wheel Loader

Operating Weight
19,026 lb
Gross Power
101.0 hp
Net Power
98.0 hp
All wheel loaders

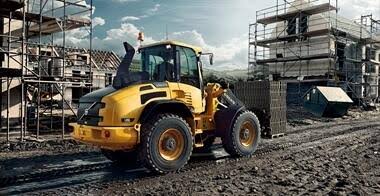

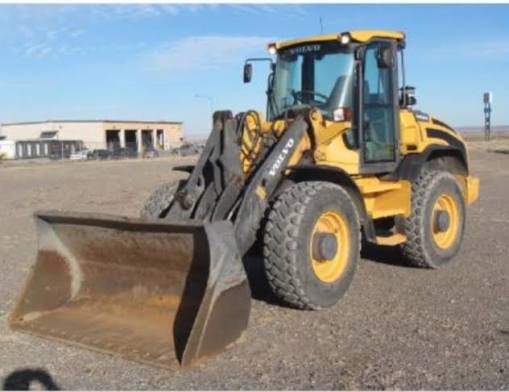

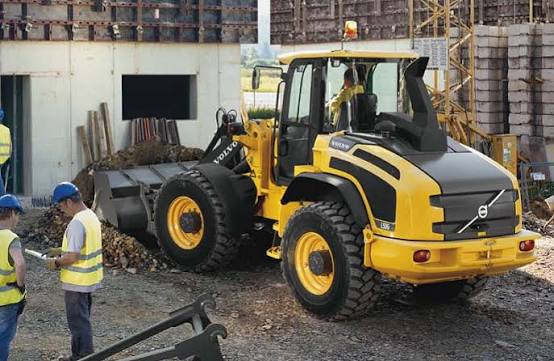

Volvo L45G Wheel Loader
1 / 5
Image 1 of 5
Image: oemoffhighway.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight19,026 lb
Fuel Capacity39.7 gal
Hydraulic System Fluid Capacity25.1 gal
Static Tipping Weight12,125 lb
Operating Voltage24 V
Engine Oil Fluid Capacity3.7 gal
Alternator Supplied Amperage110 A
Front Axle/Diff Fluid Capacity4.5 gal
Rear Axle/Diff Fluid Capacity4.9 gal
Cooling System Fluid Capacity5.3 gal
Transmission Fluid Capacity0.6 gal
Rated Bucket Capacity2.00 yd³

Engine

Engine specifications
Engine ModelD4H
Displacement244 in³
Power Measured @1,800 rpm
Gross Power101.0 hp
Net Power98.0 hp
Torque Measured @1,450 rpm
MakeVolvo

Weights

Weights specifications
Operating Weight19,070 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity34.9 gal/min
Raise Time5.3 s
Lower Time3.2 s
Dump Time1.1 s
Pump TypeAxial Piston Pump

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab119 in
Wheelbase104 in
Width Over Tires86 in
Reach at Max Lift and Dump37 in
Length with Bucket on Ground251 in
Hinge Pin - Max Height148 in

Transmission

Transmission specifications
Max Speed - Forward25.0 mph
Max Speed - Reverse25.0 mph
Transmission TypeHydrostatic
Number of Forward Gears3
Number of Reverse Gears3

Bucket

Bucket specifications
Dump Clearance at Max Raise110 in
Breakout Force13,938 lb
Bucket Width89 in

General Specifications

General Specifications specifications
Operating Weight19,070 (8,650) — Starting 2016 Model Year
Bucket Capacity2.0 (1.5) — Starting 2016 Model Year
Engine typeVolvo D4H — Starting 2016 Model Year
Engine Power98 (73) — Starting 2016 Model Year
Max Dump Height9.2 (2.8) — Starting 2016 Model Year
