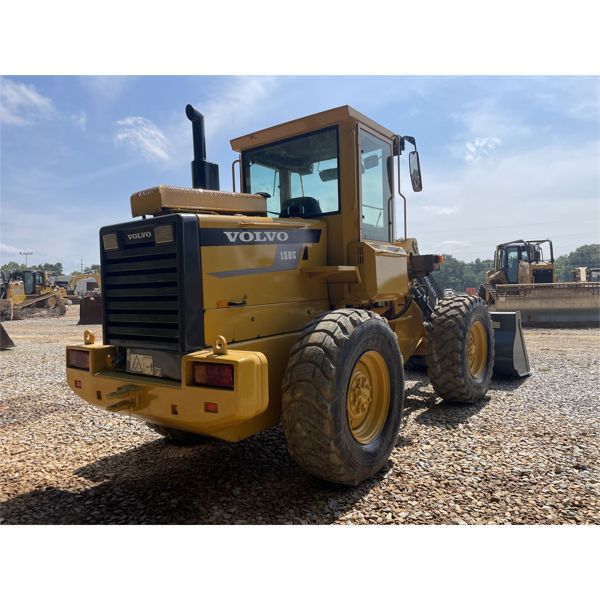

Volvo
L50C
- Operating Weight
- 19,842 lb
- Bucket Capacity - heaped
- 2.00 yd³
- Gross Power
- 101.0 hp
- Net Power
- 97.0 hp
1 / 5
Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 19,842 lb |
|---|---|
| Fuel Capacity | 45.0 gal |
| Tire Size | 15.5 R25 |
| Hydraulic System Fluid Capacity | 17.2 gal |
| Static Tipping Weight | 12,081 lb |
| Operating Voltage | 24 V |
| Turning Radius | 212 in |
| Engine Oil Fluid Capacity | 3.0 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 60 A |
| Front Axle/Diff Fluid Capacity | 5.9 gal |
| Rear Axle/Diff Fluid Capacity | 5.9 gal |
| Cooling System Fluid Capacity | 5.9 gal |
| Transmission Fluid Capacity | 1.9 gal |
Engine
| Engine Model | TD 40 KAE |
|---|---|
| Displacement | 244 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 101.0 hp |
| Net Power | 97.0 hp |
| Number of Cylinders | 4 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,400 rpm |
Hydraulic System
| Pump Flow Capacity | 31.8 gal/min |
|---|---|
| Raise Time | 5.4 s |
| Lower Time | 3.0 s |
| Dump Time | 1.1 s |
| Relief Valve Setting | 3,771 psi |
| Pump Type | axial piston |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 120 in |
| Wheelbase | 109 in |
| Width Over Tires | 85 in |
| Reach at Max Lift and Dump | 40 in |
| Length with Bucket on Ground | 250 in |
| Hinge Pin - Max Height | 146 in |
Transmission
| Max Speed - Forward | 24.3 mph |
|---|---|
| Max Speed - Reverse | 24.3 mph |
| Transmission Type | hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 2.00 yd³ |
|---|---|
| Dump Clearance at Max Raise | 111 in |
| Bucket Width | 91 in |
