Volvo
Tata Hitachi
TWL3036
Wheel Loader
41 specifications
1 / 5

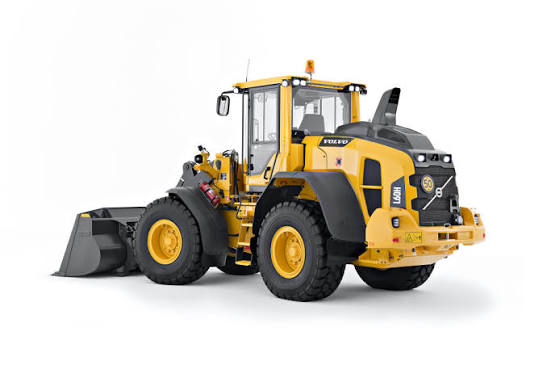

Image 1 of 5
Specifications
55 data points
Operating Specifications
| Fuel Capacity | 58.7 gal |
|---|---|
| Hydraulic System Fluid Capacity | 23.8 gal |
| Engine Oil Fluid Capacity | 5.3 gal |
| Cooling System Fluid Capacity | 8.0 gal |
| Transmission Fluid Capacity | 5.9 gal |
| Rated Bucket Capacity | 2.11 – 6.50 yd³ |
| DEF tank capacity | 5.3 gal |
Engine
| Engine Model | Volvo D6J |
|---|---|
| Displacement | 348 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 164.0 hp |
| Net Power | 164.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,400 rpm |
Weights
| Operating Weight | 26,800 lb |
|---|
Hydraulic System
| Working pressure | Pump 2 - 26 MPa Pump 3 - 21 MPa |
|---|---|
| Engine speed | 1,900 rpm |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 130 in |
| Wheelbase | 119 in |
| Width Over Tires | 96 in |
| Length with Bucket on Ground | 289 in |
| Hinge Pin - Max Height | 152 in |
Bucket
| Dump Clearance at Max Raise | 113 in |
|---|---|
| Breakout Force | 18,389 lb |
General Specifications
| Operating Weight | 29,983 (13,600) Starting 2024 Model Year |
|---|---|
| Bucket Capacity | 2.7 (2.1) Starting 2024 Model Year |
| Engine type | Volvo D6J Starting 2019 Model Year |
| Engine Power | 167 (124) Starting 2021 Model Year |
| Max Dump Height | 9.3 (2.8) Starting 2024 Model Year |
Drive System
| Transport speed, maximum | 28.5 mph |
|---|---|
| Torque multiplication, stall ratio | 2.5:1 |
| Transmission | Volvo HTE 125C |
Hydraulic cycle times (unloaded)
| Total cycle time | 9.7 s |
|---|---|
| Lift | 4.5 s |
| Lower | 2.9 s |
| Tilt | 2.3 s |
Steering System
| Articulation Angle | 40 ° |
|---|---|
| Maximum flow | 15.9 gal/min |
| Steering cylinders | 2 |
| Working pressure | 21 MPa 210 bar |
| Cylinder bore | 3 in |
| Rod diameter | 2 in |
| Stroke | 16 in |
Electrical System
| Voltage | 24 V |
|---|---|
| Battery capacity | — |
| Alternator rating | 3135/80 (W/A) |
| Starter motor output | 7.4 hp |
| Cold cranking capacity | 1000 A |
Axles
| Front | Volvo AWB 15 |
|---|---|
| Rear | Volvo AWB 15 |
| Axle oil front | 6.7 gal |
| Axle oil rear | 6.7 gal |
| Rear axle oscillation | 13 ° |
