Volvo
L90C
- Operating Weight
- 35,494 lb
- Bucket Capacity - heaped
- 4.60 yd³
- Gross Power
- 158.3 hp
- Net Power
- 154.0 hp
1 / 5

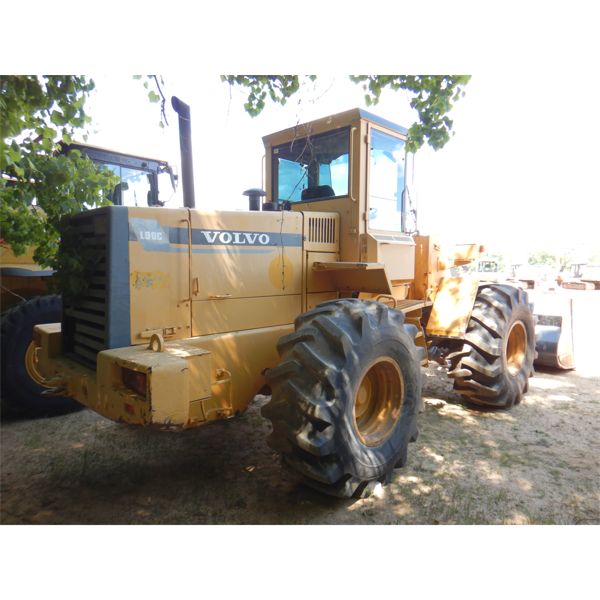

Image 1 of 5
Specifications
44 data points
Operating Specifications
| Operating Weight | 35,494 lb |
|---|---|
| Fuel Capacity | 55.5 gal |
| Tire Size | 20.5R25*L2 |
| Hydraulic System Fluid Capacity | 34.4 gal |
| Static Tipping Weight | 22,686 lb |
| Operating Voltage | 24 V |
| Turning Radius | 238 in |
| Engine Oil Fluid Capacity | 4.3 gal |
| Rear Axle Oscillation | 30 ° |
| Alternator Supplied Amperage | 60 A |
| Front Axle/Diff Fluid Capacity | 9.6 gal |
| Rear Axle/Diff Fluid Capacity | 10.9 gal |
| Cooling System Fluid Capacity | 14.1 gal |
| Transmission Fluid Capacity | 8.8 gal |
Engine
| Engine Model | TD 63 KBE |
|---|---|
| Displacement | 334 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 158.3 hp |
| Net Power | 154.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,100 rpm |
Hydraulic System
| Pump Flow Capacity | 53.0 gal/min |
|---|---|
| Raise Time | 5.5 s |
| Lower Time | 2.3 s |
| Dump Time | 1.9 s |
| Relief Valve Setting | 3,263 psi |
| Pump Type | vane pump |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 130 in |
| Wheelbase | 119 in |
| Width Over Tires | 98 in |
| Reach at Max Lift and Dump | 44 in |
| Length with Bucket on Ground | 296 in |
| Hinge Pin - Max Height | 156 in |
Transmission
| Max Speed - Forward | 23.8 mph |
|---|---|
| Max Speed - Reverse | 17.3 mph |
| Transmission Type | powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 4.60 yd³ |
|---|---|
| Dump Clearance at Max Raise | 111 in |
| Breakout Force | 24,650 lb |
| Bucket Width | 104 in |
