Volvo
L90F
- Operating Weight
- 33,450 lb
- Bucket Capacity - heaped
- 3.00 yd³
- Gross Power
- 173.0 hp
- Net Power
- 172.0 hp
1 / 5

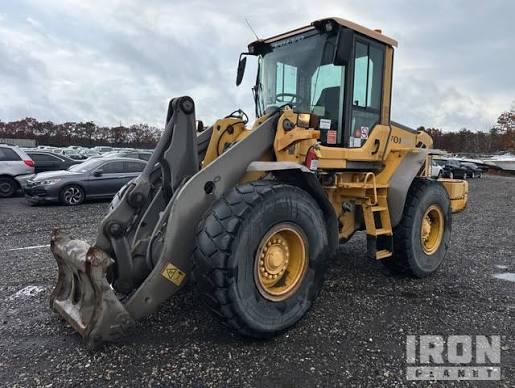

Image 1 of 5
Specifications
46 data points
Operating Specifications
| Operating Weight | 33,450 lb |
|---|---|
| Fuel Capacity | 59.2 gal |
| Tire Size | 20.5 R25 L2 |
| Hydraulic System Fluid Capacity | 23.8 gal |
| Static Tipping Weight | 23,600 lb |
| Operating Voltage | 24 V |
| Turning Radius | 212 in |
| Engine Oil Fluid Capacity | 5.3 gal |
| Rear Axle Oscillation | 26 ° |
| Alternator Supplied Amperage | 80 A |
| Front Axle/Diff Fluid Capacity | 9.3 gal |
| Rear Axle/Diff Fluid Capacity | 7.1 gal |
| Cooling System Fluid Capacity | 7.9 gal |
| Transmission Fluid Capacity | 5.3 gal |
| Rated Bucket Capacity | 3.00 – 9.19 yd³ |
Engine
| Engine Model | D6E LAE3 |
|---|---|
| Displacement | 348 in³ |
| Power Measured @ | 1,700 rpm |
| Gross Power | 173.0 hp |
| Net Power | 172.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,600 rpm |
| Make | Volvo |
Weights
| Operating Weight | 33,830 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 43.0 gal/min |
|---|---|
| Raise Time | 5.4 s |
| Lower Time | 2.5 s |
| Dump Time | 2.5 s |
| Relief Valve Setting | 3,770 psi |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 130 in |
| Wheelbase | 119 in |
| Width Over Tires | 98 in |
| Reach at Max Lift and Dump | 46 in |
| Length with Bucket on Ground | 298 in |
| Hinge Pin - Max Height | 156 in |
Transmission
| Max Speed - Forward | 28.7 mph |
|---|---|
| Max Speed - Reverse | 28.7 mph |
| Transmission Type | Volvo HTE 125 |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 3.00 yd³ |
|---|---|
| Dump Clearance at Max Raise | 111 in |
| Breakout Force | 25,420 lb |
| Bucket Width | 104 in |
