Volvo

MC60

Skid Steer Loader

Operating Weight
5,478 lb
Bucket Capacity
0.60 yd³
Max Speed
6.5 mph
Gross Power
49.5 hp
All skid steer loaders

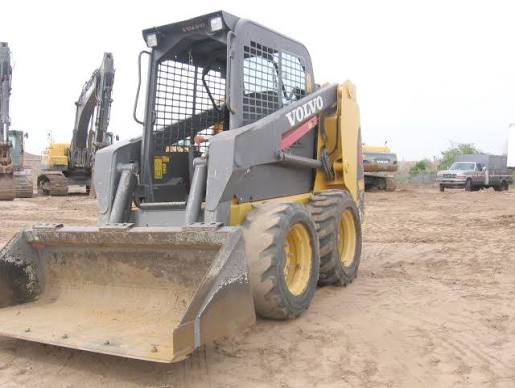

Volvo MC60 Skid Steer Loader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,478 lb
Max Speed6.5 mph
Fuel Capacity17.5 gal
Hydraulic System Fluid Capacity9.6 gal
Tire Size10.00x16.5
Operating Voltage12 V
Alternator Supplied Amperage45 A
Engine Oil Fluid Capacity2.3 gal
Cooling System Fluid Capacity4.0 gal
Chain Box Fluid Capacity - each side1.6 gal
Operating Speed6.5 mph

Engine

Engine specifications
Engine ModelV2203-B
Displacement134 in³
Power Measured @2,800 rpm
Gross Power49.5 hp
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity16.6 gal/min
Relief Valve Pressure2,500 psi

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab78 in
Wheelbase37 in
Width Over Tires60 in
Reach at Max Lift and Dump25 in
Length with Bucket131 in
Clearance at Max Lift and Dump86 in
Length w/o Bucket102 in

Loader

Loader specifications
Bucket Capacity0.60 yd³
Operating Load Rating1,350 lb
Tipping Angle2,700 °
