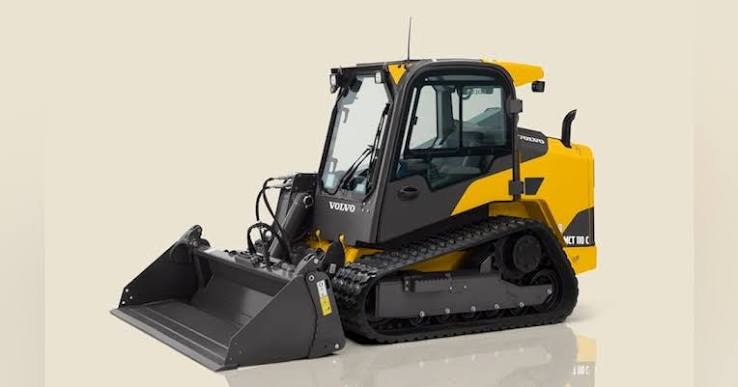

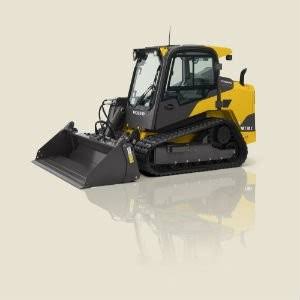

VolvoVolvo
MCT85C
Compact Track Loader
68 specifications
1 / 5
Image 1 of 5
Specifications
64 data points
Engine
| Engine Model | TCAE - 55 |
|---|---|
| Displacement | 151 in³ |
| Number of Cylinders | 4 |
| Aspiration | Turbo |
| Max Torque | 295 lb-ft |
| Fuel Type | Diesel |
| Alternator | 342,000 A |
| Battery | 12 - 109 (V - Ah) |
| Starter | 5.7 hp |
| Gross horsepower - SAE J1995 | 73.8 hp |
Weights
| Weight | 10,230 lb |
|---|
Dimensions
| Ground Clearance | 10 in |
|---|---|
| Wheelbase | 83 in |
| Overall Height | 83 in |
| Turning Radius | 70 in |
| Dump Height | 96 in |
| Dump angle | 42 ° |
| Angle of departure | 29 ° |
| Height to Hinge Pin | 125 in |
| Overall length (W/bucket) | 146 in |
| Overall length (L/bucket) | 117 in |
| Dump reach | 23 in |
| Turning radius front L/bucket | 59 in |
| Turning radius front W/bucket | 96 in |
| Attachment roll back angle | 30 ° |
Fluid Capacities
| Fuel Tank | 27.3 gal |
|---|---|
| Hydraulic system | 15.9 gal |
| Cooling system | 4.1 gal |
| Engine oil w/ filter change | 4.0 gal |
| Hydraulic oil reservoir | 6.9 gal |
| Tipping Load | 6,426 lb |
Bucket
| Breakout force, curl | 5,699 lb |
|---|---|
| Breakout force, lift | 5,884 lb |
| General Purpose Bucket Heaped | 0.60 yd³ |
| General Purpose Bucket Height | 22 in |
| General Purpose Bucket Length | 32 in |
| General Purpose Bucket Weight | 474 lb |
| General Purpose Bucket Width | 73 in |
| Landscape Bucket Heaped cap | 0.80 yd³ |
| Landscape Bucket Height | 22 in |
| Landscape Bucket Length | 39 in |
| Landscape Bucket Weight | 0 in³ |
| Landscape Bucket Width | 73 in |
| Multi Purpose Bucket Heaped cap | 0.80 yd³ |
| Multi Purpose Bucket Height | 28 in |
| Multi Purpose Bucket Length | 39 in |
| Multi Purpose Bucket Weight | 776 lb |
| Multi Purpose Bucket Width | 73 in |
General Specifications
| Operating Width IN. (CM) | 78 (198) — Starting 2016 Model Year |
|---|---|
| Engine Power HP (KW) | 74 (55) — Starting 2016 Model Year |
| OPERATING LOAD LBS. (KG) | 2,260 (1021) — Starting 2016 Model Year |
Loader
| Operating Width | 78 in |
|---|---|
| Operating Load Rating | 2,260 lb |
| Bucket Width | 78 in |
| High flow pump output | 33.1 gal/min |
| Standard hydraulic pump output | 23.8 gal/min |
| System pressure | 3,335 psi |
Performance
| Curl | 1.4 s |
|---|---|
| Dump | 1.8 s |
| Lift arm path | Radial |
| Lower (power down) | 2.3 s |
| Raise (lifting) | 3.5 s |
| Rated operating load, 35% tip | 2,251 lb |
Speeds
| Single speed | 6.2 mph |
|---|
