Volvo

MCT85C

Compact Track Loader

Displacement
151 in³
All compact track loaders

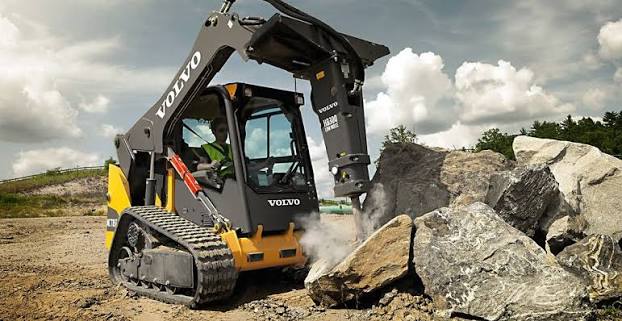

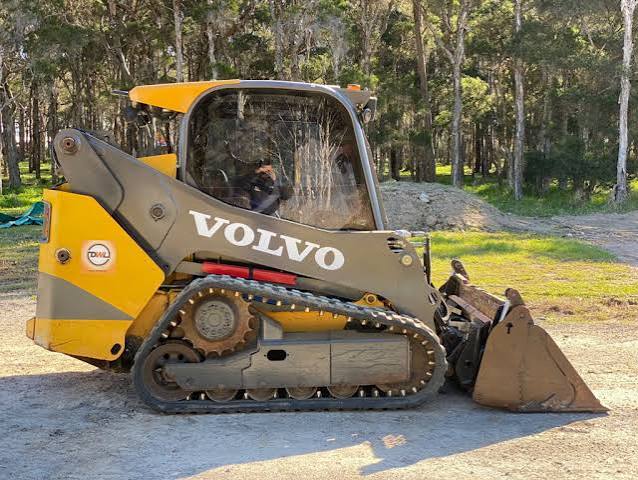

Volvo MCT85C Compact Track Loader
1 / 5
Image 1 of 5
Image: heavyequipmentguide.ca

Specifications

68 data points

Engine

Engine specifications
Engine ModelKDI 2054 TCR
Displacement151 in³
Number of Cylinders4
AspirationTurbo
Max Torque221 lb-ft
Fuel TypeDiesel
Alternator342,000 A
Battery12 - 109 (V - Ah)
Starter5.7 hp
Gross horsepower - SAE J199546.0 hp

Weights

Weights specifications
Weight8,356 lb

Dimensions

Dimensions specifications
Ground Clearance9 in
Wheelbase71 in
Overall Height79 in
Turning Radius66 in
Dump Height91 in
Dump angle42 °
Angle of departure27 °
Height to Hinge Pin119 in
Overall length (W/bucket)139 in
Overall length (L/bucket)110 in
Dump reach34 in
Turning radius front W/bucket83 in
Turning radius front L/bucket46 in
Attachment roll back angle30 °

Fluid Capacities

Fluid Capacities specifications
Fuel Tank24.4 gal
Hydraulic system11.5 gal
Cooling system2.7 gal
Engine oil w/ filter change2.6 gal
Hydraulic oil reservoir6.9 gal
Tipping Load5,428 lb

Bucket

Bucket specifications
Breakout force, curl6,543 lb
Breakout force, lift3,461 lb
General Purpose Bucket Heaped0.60 yd³
General Purpose Bucket Height22 in
General Purpose Bucket Length32 in
General Purpose Bucket Weight441 lb
General Purpose Bucket Width66 in
Landscape Bucket Heaped cap0.71 yd³
Landscape Bucket Height22 in
Landscape Bucket Length39 in
Landscape Bucket Weight0 in³
Landscape Bucket Width66 in
Multi Purpose Bucket Heaped cap0.60 yd³
Multi Purpose Bucket Height28 in
Multi Purpose Bucket Length39 in
Multi Purpose Bucket Weight571 lb
Multi Purpose Bucket Width66 in

General Specifications

General Specifications specifications
Operating Width IN. (CM)66 (168) — Starting 2016 Model Year
Engine Power HP (KW)59.9 (43.9) — Starting 2019 Model Year
OPERATING LOAD LBS. (KG)1,900 (862) — Starting 2016 Model Year
Rated Operating Capacity LBS (KG) 50%1,900 (862) — Starting 2020 Model Year
Rated Operating Capacity LBS (KG) 35%1,900 (862) — Starting 2019 Model Year

Loader

Loader specifications
Operating Width66 in
Operating Load Rating1,900 lb
Bucket Width72 in
High flow pump output26.5 gal/min
Standard hydraulic pump output18.5 gal/min
System pressure230 psi

Performance

Performance specifications
Curl1.4 s
Dump1.8 s
Lift arm pathVertical
Lower (power down)3.5 s
Raise (lifting)5.1 s
Rated operating load, 35% tip1,900 lb
Rated operating capacity (ISO 14397)3,001 lb

Speeds

Speeds specifications
Single speed10.0 mph
Two speed5.6 mph
