Volvo

MCT135D

Compact Track Loader

Displacement
269 in³
All compact track loaders

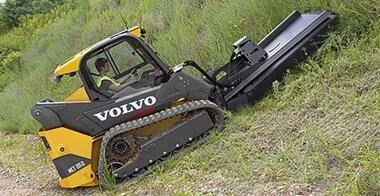

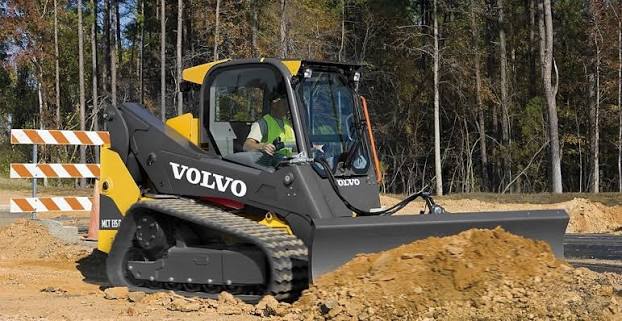

Volvo MCT135D Compact Track Loader
1 / 5
Image 1 of 5
Image: heavyequipmentguide.ca

Specifications

65 data points

Engine

Engine specifications
Engine ModelTCAE-55
Displacement269 in³
Number of Cylinders4
AspirationTurbo
Max Torque295 lb-ft
Fuel TypeDiesel
Alternator342,000 A
Battery12 - 109 (V - Ah)
Starter5.7 hp
Gross horsepower - SAE J199555.0 hp

Weights

Weights specifications
Weight11,219 lb

Dimensions

Dimensions specifications
Ground Clearance9 in
Wheelbase43 in
Overall Height83 in
Turning Radius70 in
Dump Height90 in
Dump angle42 °
Angle of departure29 °
Height to Hinge Pin125 in
Overall length (W/bucket)150 in
Overall length (L/bucket)119 in
Dump reach36 in
Turning radius front L/bucket67 in
Turning radius front W/bucket91 in
Attachment roll back angle30 °

Fluid Capacities

Fluid Capacities specifications
Fuel Tank27.3 gal
Hydraulic system55.0 gal
Cooling system5.9 gal
Engine oil w/ filter change4.0 gal
Hydraulic oil reservoir26.0 gal
Tipping Load8,627 lb

Bucket

Bucket specifications
Breakout force, curl6,543 lb
Breakout force, lift5,807 lb
General Purpose Bucket Heaped0.71 yd³
General Purpose Bucket Height22 in
General Purpose Bucket Length32 in
General Purpose Bucket Weight575 lb
General Purpose Bucket Width85 in
Landscape Bucket Heaped cap0.90 yd³
Landscape Bucket Height22 in
Landscape Bucket Length39 in
Landscape Bucket Weight0 in³
Landscape Bucket Width85 in
Multi Purpose Bucket Heaped cap0.90 yd³
Multi Purpose Bucket Height28 in
Multi Purpose Bucket Length39 in
Multi Purpose Bucket Weight884 lb
Multi Purpose Bucket Width85 in

General Specifications

General Specifications specifications
Operating Width IN. (CM)76 (193) — Starting 2019 Model Year
Engine Power HP (KW)73.8 (55) — Starting 2019 Model Year
Rated Operating Capacity LBS (KG) 50%3,000 (1,361) — Starting 2020 Model Year
Rated Operating Capacity LBS (KG) 35%3,000 (1,361) — Starting 2019 Model Year

Loader

Loader specifications
Operating Width76 in
Operating Load Rating3,000 lb
Bucket Width75 in
High flow pump output33.1 gal/min
Standard hydraulic pump output23.8 gal/min
System pressure3,336 psi

Performance

Performance specifications
Curl1.8 s
Dump2.1 s
Lift arm pathVertical
Lower (power down)2.5 s
Raise (lifting)3.7 s
Rated operating capacity (ISO 14397)3,001 lb

Speeds

Speeds specifications
Single speed5.7 mph
