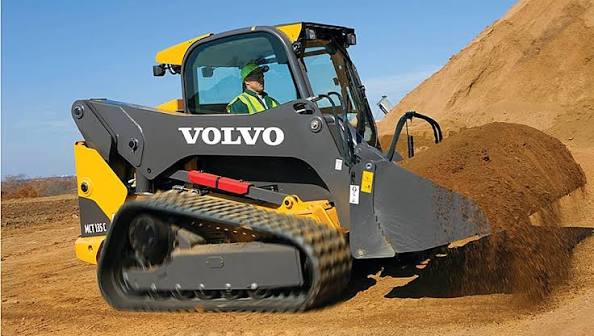

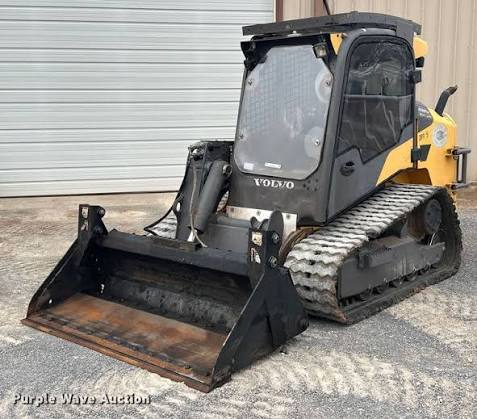

MCT135C

Specifications

85 data points

Operating Specifications specifications
Operating Weight	10,663 lb
Max Speed - high range	7.9 mph
Max Speed - low range	5.8 mph
Fuel Capacity	27.3 gal
Hydraulic System Fluid Capacity	15.9 gal
Cooling System Fluid Capacity	4.1 gal
Operating Voltage	12 V
Alternator Supplied Amperage	95 A
Engine Oil Capacity	4.0 gal

Weights specifications
Weight	11,288 lb

Hydraulic System specifications
Pump Flow	23.0 gal/min
Relief Valve Pressure	3,335 psi

Dimensions specifications
Height - Top of Cab	83 in
Wheelbase	71 in
Reach at Max Lift and Dump	36 in
Width Over Tracks	78 in
Overall Height	83 in
Turning Radius	70 in
Length with Bucket	150 in
Clearance at Max Lift and Dump	95 in
Turning Radius from Center - inc bucket	69 in
Turning Radius from Center - machine rear	69 in
Dump Height	95 in
Length - without Bucket	108 in
Angle of departure	29 °
Dump angle	42 °
Height to Hinge Pin	125 in
Overall length (W/bucket)	150 in
Overall length (L/bucket)	120 in
Dump reach	36 in
Turning radius front W/bucket	96 in
Turning radius front L/bucket	59 in
Attachment roll back angle	30 °

Undercarriage specifications
Width of Track	18 in

Bucket specifications
Breakout force, curl	7,187 lb
Breakout force, lift	5,807 lb
General Purpose Bucket Heaped	0.71 yd³
General Purpose Bucket Height	22 in
General Purpose Bucket Length	32 in
General Purpose Bucket Weight	575 lb
General Purpose Bucket Width	85 in
Landscape Bucket Heaped cap	0.90 yd³
Landscape Bucket Height	22 in
Landscape Bucket Length	39 in
Landscape Bucket Weight	0 in³
Landscape Bucket Width	78 in
Multi Purpose Bucket Heaped cap	0.90 yd³
Multi Purpose Bucket Height	28 in
Multi Purpose Bucket Length	39 in
Multi Purpose Bucket Weight	884 lb
Multi Purpose Bucket Width	85 in

Loader specifications
Bucket Capacity	0.90 yd³
Tipping Angle	8,628 °
Operating Load	3,000 lb
Operating Width	78 in
High flow pump output	33.1 gal/min
Standard hydraulic pump output	23.8 gal/min
System pressure	3,335 psi
