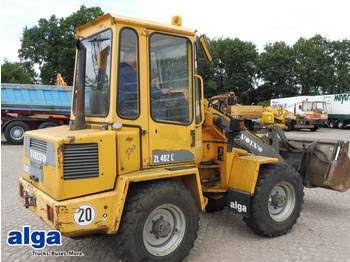

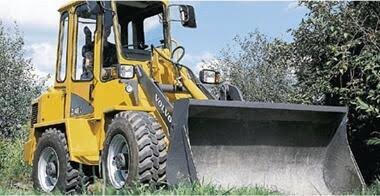

Volvo
ZL402C
- Operating Weight
- 7,500 lb
- Bucket Capacity - heaped
- 0.80 yd³
- Gross Power
- 38.0 hp
- Net Power
- 37.0 hp
1 / 5
Image 1 of 5
Specifications
41 data points
Operating Specifications
| Operating Weight | 7,500 lb |
|---|---|
| Fuel Capacity | 11.1 gal |
| Tire Size | 10.5-18 |
| Hydraulic System Fluid Capacity | 15.9 gal |
| Static Tipping Weight | 5,512 lb |
| Operating Voltage | 12 V |
| Engine Oil Fluid Capacity | 1.6 gal |
| Rear Axle Oscillation | 20 ° |
| Alternator Supplied Amperage | 60 A |
| Front Axle/Diff Fluid Capacity | 1.5 gal |
| Rear Axle/Diff Fluid Capacity | 2.2 gal |
Engine
| Engine Model | F 3 L 1011F |
|---|---|
| Displacement | 125 in³ |
| Power Measured @ | 2,300 rpm |
| Gross Power | 38.0 hp |
| Net Power | 37.0 hp |
| Number of Cylinders | 3 |
| Aspiration | Natural |
| Torque Measured @ | 1,800 rpm |
Hydraulic System
| Pump Flow Capacity | 8.5 gal/min |
|---|---|
| Raise Time | 6.0 s |
| Lower Time | 5.0 s |
| Dump Time | 2.5 s |
| Relief Valve Setting | 3,045 psi |
| Pump Type | gear type |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 98 in |
| Wheelbase | 73 in |
| Width Over Tires | 64 in |
| Reach at Max Lift and Dump | 25 in |
| Length with Bucket on Ground | 179 in |
| Hinge Pin - Max Height | 118 in |
Transmission
| Max Speed - Forward | 7.5 mph |
|---|---|
| Max Speed - Reverse | 7.5 mph |
| Transmission Type | hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 0.80 yd³ |
|---|---|
| Dump Clearance at Max Raise | 96 in |
| Breakout Force | 7,419 lb |
| Bucket Width | 66 in |
