Wacker Neuson

3503

Mini Excavator

Operating Weight
9,449 lb
Max Digging Depth
128 in
Net Power
40.0 hp
All mini excavators

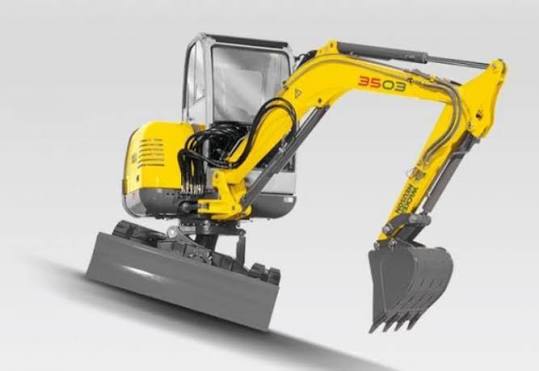

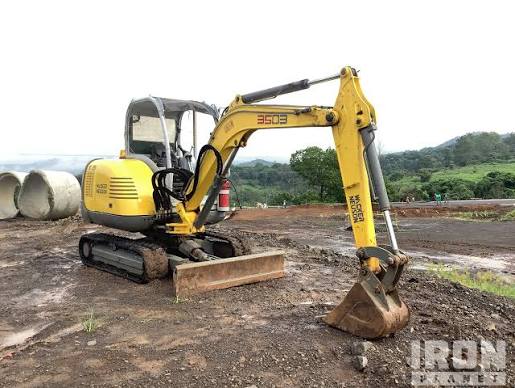

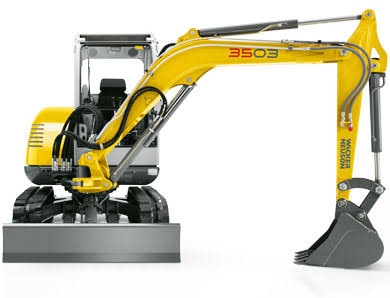

Wacker Neuson 3503 Mini Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,449 lb
Fuel Capacity13.7 gal
Hydraulic Pump Flow Capacity30.1 gal/min
Hydraulic System Fluid Capacity13.2 gal
Hydraulic System Relief Valve Pressure3,481 psi
Operating Voltage12 V

Engine

Engine specifications
Engine Model404F-22
Power Measured @1,975 rpm
Net Power40.0 hp
Number of Cylinders4
AspirationWater-cooled
Engine MakePerkins

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab95 in
Length of Track on Ground205 in
Tail Swing Radius55 in
Width to Outside of Tracks65 in

Undercarriage

Undercarriage specifications
Ground Pressure47 psi
Max Travel Speed3.4 mph
Shoe Size12 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth128 in
Max Reach Along Ground205 in
Max Vertical Wall Digging Depth83 in
Max Loading Height143 in
Shipping Length of Unit205 in
Max Cutting Height194 in
Shipping Height of Unit95 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth139 in
Max Cutting Height202 in
Max Loading Height151 in
Max Vertical Wall Digging Depth94 in
Max Reach Along Ground216 in
Shipping Height of Unit95 in
Shipping Length of Unit205 in
