Wacker Neuson

EZ38

Mini Excavator

Operating Weight
9,863 lb
Max Digging Depth
122 in
Net Power
24.4 hp
All mini excavators

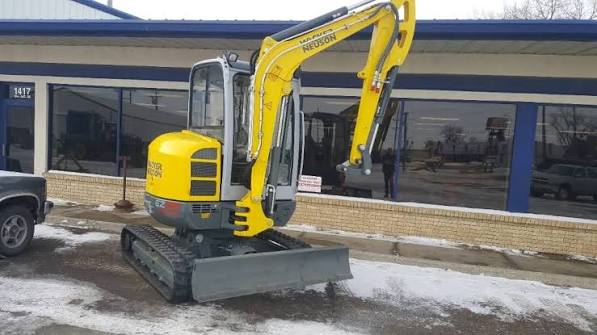

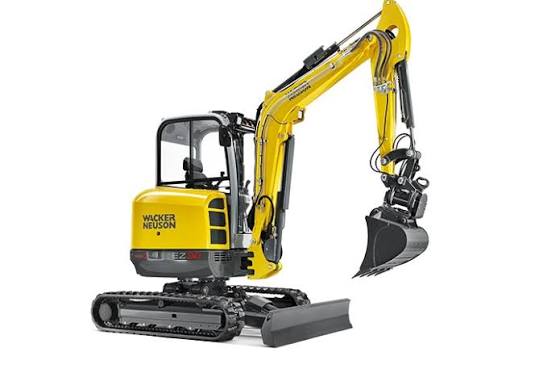

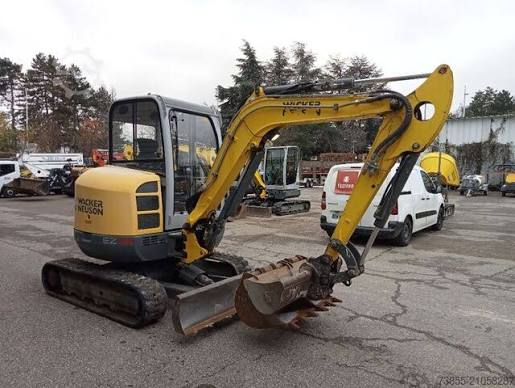

Wacker Neuson EZ38 Mini Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,863 lb
Fuel Capacity11.6 gal
Hydraulic Pump Flow Capacity30.1 gal/min
Hydraulic System Fluid Capacity10.2 gal
Hydraulic System Relief Valve Pressure3,481 psi

Engine

Engine specifications
Engine Model3TNV88F
Displacement100 in³
Power Measured @2,400 rpm
Net Power24.4 hp
Number of Cylinders3
AspirationWater-cooled
Engine MakeYanmar

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab98 in
Length of Track on Ground190 in
Width to Outside of Tracks40 in

Undercarriage

Undercarriage specifications
Max Travel Speed2.7 mph
Shoe Size12 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth122 in
Max Reach Along Ground205 in
Max Vertical Wall Digging Depth95 in
Max Loading Height131 in
Shipping Length of Unit190 in
Max Cutting Height179 in
Shipping Height of Unit98 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth133 in
Max Cutting Height183 in
Max Loading Height137 in
Max Vertical Wall Digging Depth104 in
Max Reach Along Ground215 in
Shipping Height of Unit98 in
Shipping Length of Unit191 in
