Wacker Neuson
ASV
PT-70
Compact Track Loader
32 specifications
1 / 5

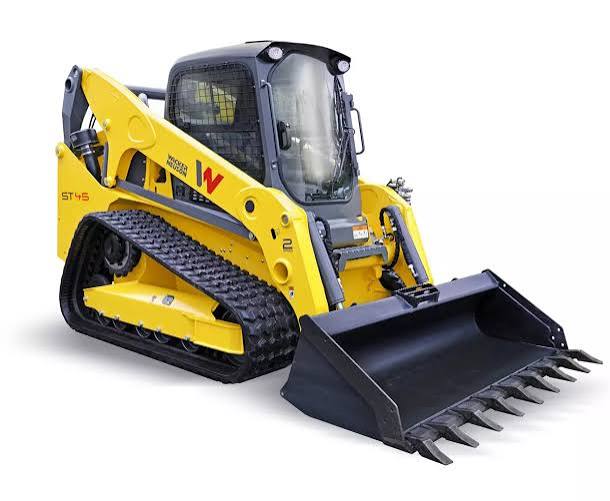

Image 1 of 5
Specifications
33 data points
Operating Specifications
| Operating Weight | 10,245 lb |
|---|---|
| Max Speed - high range | 8.7 mph |
| Max Speed - low range | 4.3 mph |
| Fuel Capacity | 24.7 gal |
Engine
| Engine Model | Perkins 854 |
|---|---|
| Gross Power | 74.3 hp |
| Aspiration | Turbo Charged |
| Emission Tier Level | Tier 4 Final |
Hydraulic System
| Pump Flow | 22.9 gal/min |
|---|---|
| Relief Valve Pressure | 3,336 psi |
Dimensions
| Ground Clearance | 10 in |
|---|---|
| Height - Top of Cab | 83 in |
| Wheelbase | 64 in |
| Width Over Tracks | 18 in |
| Overall Height | 83 in |
| Length with Bucket | 144 in |
| Dump Height | 107 in |
| Length - without Bucket | 117 in |
| Dump angle | 38 ° |
| Angle of departure | 30 ° |
| Length - Track on Ground | 64 in |
| Hinge pin height - fully raised | 135 in |
| Dump reach | 34 in |
General Specifications
| Operating Width IN. (CM) | 78 (198) — Starting 2024 Model Year |
|---|---|
| Engine Power HP (KW) | 74 (55) — Starting 2024 Model Year |
| Rated Operating Capacity LBS (KG) 50% | 3,150 (1,432) — Starting 2024 Model Year |
| Rated Operating Capacity LBS (KG) 35% | 3,150 (1,432) — Starting 2025 Model Year |
Loader
| Tipping Angle | 38 ° |
|---|---|
| Bucket Width | 78 in |
| Bucket Breakout Force | 6,722 lb |
| Boom breakout force | 5,306 lb |
| Rollback - Ground Level | 31 ° |
| Bucket Rollback at Max Height | 46 ° |
