Wacker Neuson

WL32

Wheel Loader

Bucket Capacity - heaped
0.60 yd³
Gross Power
49.0 hp
All wheel loaders

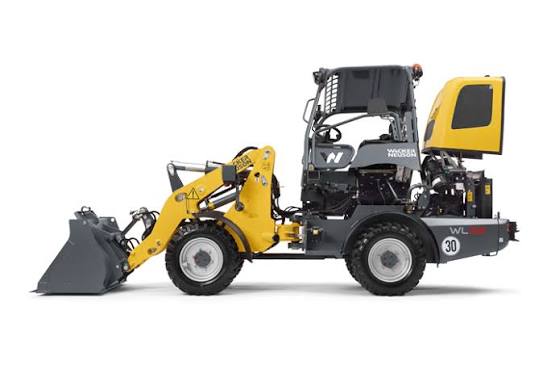

Wacker Neuson WL32 Wheel Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Max Speed12.4 mph
Fuel Capacity16.9 gal
Tire Size31x15.5-15EM ET-37
Operating Voltage12 V

Engine

Engine specifications
Engine Model404 F-22
Displacement135 in³
Power Measured @2,600 rpm
Gross Power49.0 hp
Number of Cylinders4
Engine MakePerkins
Alternator85 A

Weights

Weights specifications
Operating Weight7,496 lb
Breakout force maximum9,597 lb-ft
Lifting force maximum4,292 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity14.8 gal/min
Relief Valve Pressure6,527 psi

Dimensions

Dimensions specifications
Ground Clearance11 in
Height - Top of Cab94 in
Wheelbase78 in
Overall Length189 in
Width Over Tires56 in
Length with Bucket on Ground158 in
Track Width37 in

Bucket

Bucket specifications
Bucket Capacity - heaped0.60 yd³

General Specifications

General Specifications specifications
Operating Weight7,496 (3,400) Starting 2019 Model Year
Bucket Capacity0.59 (.38) Starting 2021 Model Year
Engine typePerkins 404F-22T Tier 4 Final Starting 2021 Model Year
Engine Power48/60 (36/45) Starting 2019 Model Year
Max Dump Height7.9 (2.40) Starting 2019 Model Year
