Wacker Neuson

WL37

Wheel Loader

Bucket Capacity - heaped
0.80 yd³
Gross Power
74.0 hp
All wheel loaders

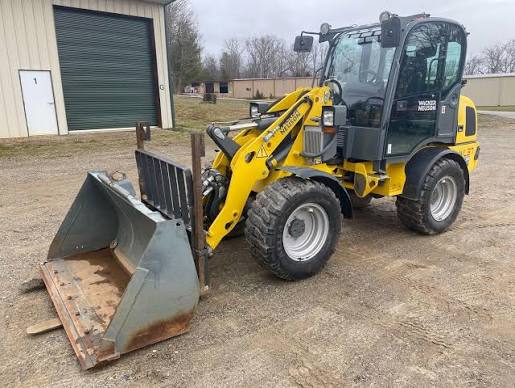

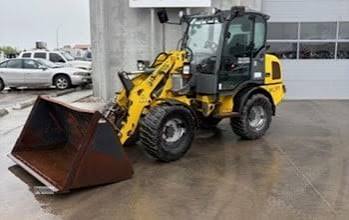

Wacker Neuson WL37 Wheel Loader
1 / 5
Image 1 of 5
Image: forconstructionpros.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Max Speed4.4 mph
Operating Voltage12 V

Engine

Engine specifications
Engine ModelTD2011 L04w
Displacement221 in³
Power Measured @2,300 rpm
Gross Power74.0 hp
Number of Cylinders4
Engine MakeDeutz
Alternator95 A

Weights

Weights specifications
Operating Weight8,223 lb
Breakout force maximum8,783 lb-ft
Lifting force maximum8,331 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity34.0 gal/min
Relief Valve Pressure6,527 psi

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab91 in
Wheelbase80 in
Overall Length196 in
Width Over Tires62 in
Length with Bucket on Ground163 in
Turning Radius66 in
Track Width47 in

Fluid Capacities

Fluid Capacities specifications
Fuel Tank14.6 gal
Hydraulic system19.9 gal
Engine Oil2.8 gal
Hydraulic oil tank17.2 gal

Bucket

Bucket specifications
Bucket Capacity - heaped0.80 yd³
Dumping angle, top40 °
