XCG

88-8

Excavator

Operating Weight
19,401 lb
Max Digging Depth
168 in
Net Power
80.5 hp
All excavators
XCG 88-8 Excavator

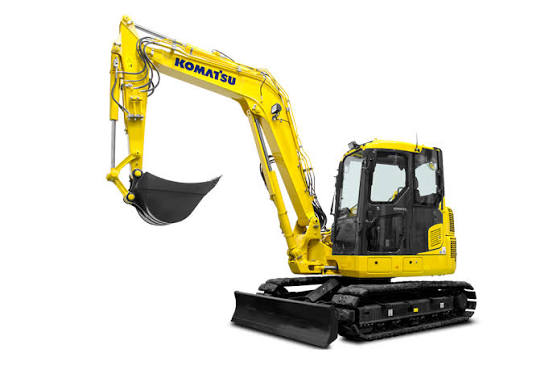

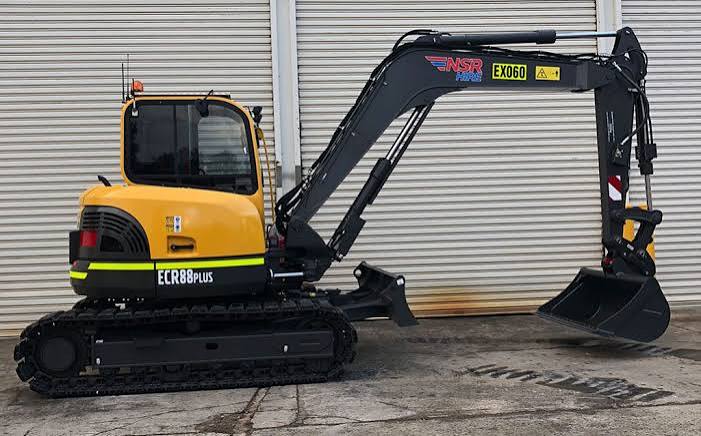

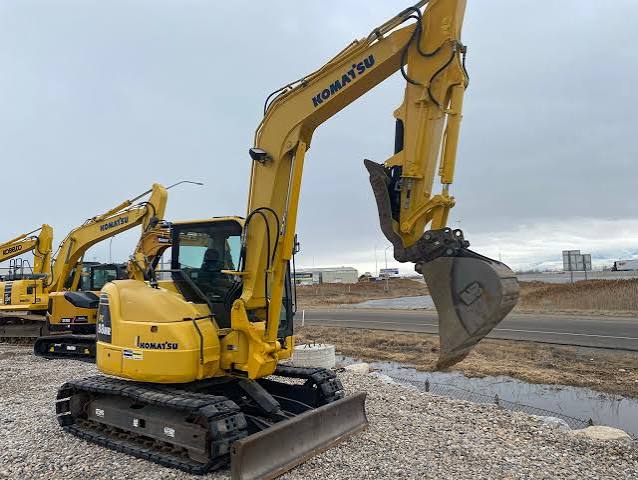

1 / 5
Image 1 of 5
Image: m.made-in-china.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight19,401 lb
Hydraulic Pump Flow Capacity52.4 gal/min
Hydraulic System Relief Valve Pressure4,061 psi

Engine

Engine specifications
Engine ModelB3.3-C
Displacement201 in³
Power Measured @2,200 rpm
Net Power80.5 hp
Number of Cylinders3

Dimensions

Dimensions specifications
Ground Clearance17 in
Tail Swing Radius74 in
Width to Outside of Tracks94 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.2 mph
Shoe Size18 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth168 in
Max Reach Along Ground236 in
Max Loading Height200 in
Max Vertical Wall Digging Depth134 in
Shipping Length of Unit253 in
Shipping Height of Unit102 in

Bucket

Bucket specifications
Reference Bucket Capacity0.50 yd³

Comparable machines

Other excavators in a similar weight class.
