Yanmar

SV100

Mini Excavator

Operating Weight
20,950 lb
Max Digging Depth
183 in
Net Power
73.5 hp
All mini excavators

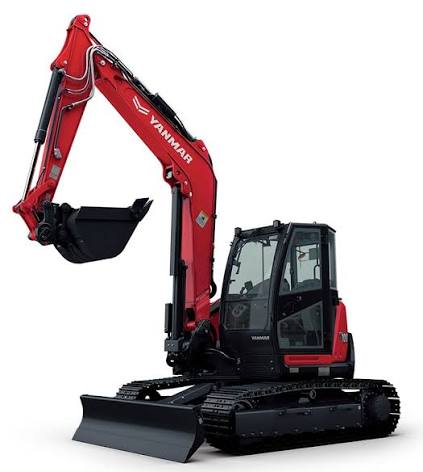

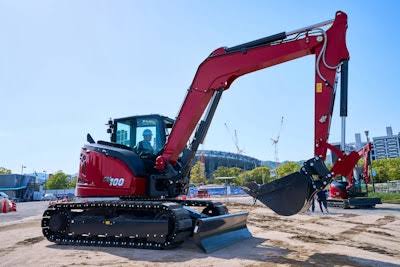

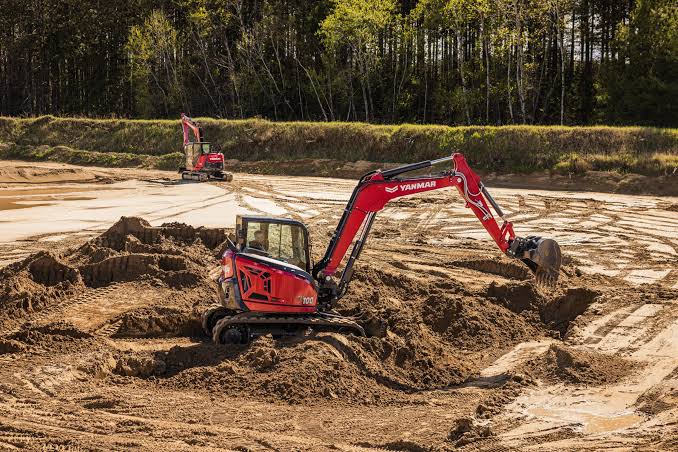

Yanmar SV100 Mini Excavator
1 / 5
Image 1 of 5
Image: yanmarce.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight20,950 lb
Fuel Capacity31.7 gal
Hydraulic Pump Flow Capacity62.0 gal/min
Hydraulic System Relief Valve Pressure3,988 psi

Engine

Engine specifications
Engine Model4TNV98T-SBV
Displacement208 in³
Power Measured @2,200 rpm
Net Power73.5 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab111 in
Length of Track on Ground121 in
Tail Swing Radius53 in
Width to Outside of Tracks93 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Max Travel Speed2.9 mph
Shoe Size19 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth183 in
Max Reach Along Ground193 in
Max Vertical Wall Digging Depth166 in
Max Loading Height196 in
Shipping Length of Unit253 in
Max Cutting Height299 in
Shipping Height of Unit111 in

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
