Yanmar

VIO50-6A

Mini Excavator

Operating Weight
10,417 lb
Max Digging Depth
148 in
Net Power
39.0 hp
All mini excavators

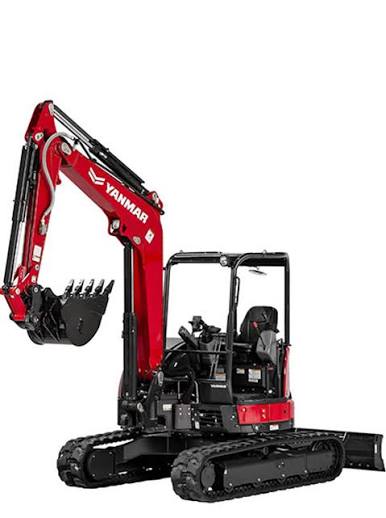

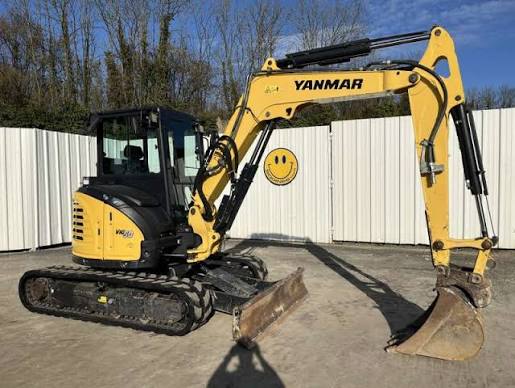

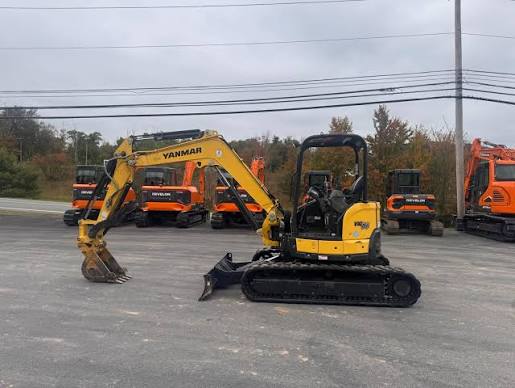

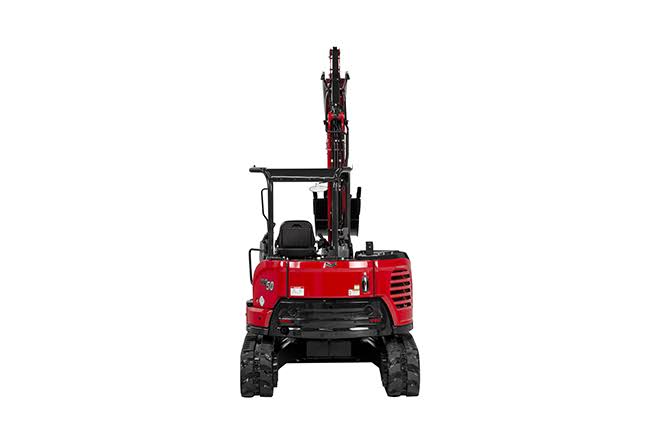

Yanmar VIO50-6A Mini Excavator
1 / 5
Image 1 of 5
Image: yanmarce.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,417 lb
Fuel Capacity17.4 gal
Hydraulic Pump Flow Capacity34.9 gal/min
Hydraulic System Relief Valve Pressure10,786 psi

Engine

Engine specifications
Engine ModelYANMAR 4TNV88C-PBV
Power Measured @2,400 rpm
Net Power39.0 hp
Number of Cylinders4
Aspirationwater-cooled

Weights

Weights specifications
Ground bearing pressure (rubber tracks)4 psi
Rubber Tracks10,417 lb
Steel tracks10,703 lb
Ground bearing pressure (steel tracks)5 psi

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab101 in
Wheelbase102 in
Tail Swing Radius39 in
Width to Outside of Tracks77 in
Overall Height226 in

Undercarriage

Undercarriage specifications
Max Travel Speed2.9 mph
Min Travel Speed1.5 mph

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth148 in
Boom Swing - Left68 °
Boom Swing - Right68 °

Bucket

Bucket specifications
Bucket digging Force - SAE6,497 lb

General Specifications

General Specifications specifications
Operating Weight lbs (kg)10,792 (4,895) — Starting 2025 Model Year
Digging Depth ft (m)12.3 (3.75) — Starting 2025 Model Year
Engine hp (kW)39.0 (29.1) — Starting 2025 Model Year
Max Reach @ ground level ft. (m)18.83 (5.74) — Starting 2025 Model Year

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Blades

Blades specifications
Blade Width78 in
Blade Height16 in
