Yanmar

VIO75-C

Mini Excavator

Operating Weight
17,637 lb
Max Digging Depth
175 in
Net Power
55.7 hp
All mini excavators

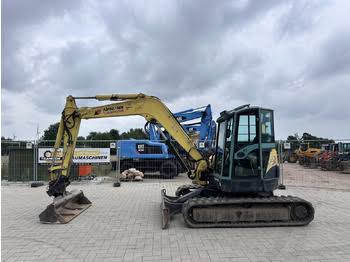

Yanmar VIO75-C Mini Excavator
1 / 5
Image 1 of 5
Image: purplewave.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight17,637 lb
Hydraulic Pump Flow Capacity39.1 gal/min
Hydraulic System Relief Valve Pressure3,554 psi

Engine

Engine specifications
Engine Model4TNV98ZWBV
Displacement201 in³
Power Measured @2,000 rpm
Net Power55.7 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance16 in
Tail Swing Radius46 in
Width to Outside of Tracks90 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.1 mph
Shoe Size18 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth175 in
Max Reach Along Ground276 in
Max Vertical Wall Digging Depth158 in
Max Loading Height185 in
Shipping Length of Unit248 in
Shipping Height of Unit108 in

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³
