Yanmar

VIO80-1A

Mini Excavator

Operating Weight
18,136 lb
Max Digging Depth
185 in
Gross Power
56.9 hp
Net Power
55.7 hp
All mini excavators

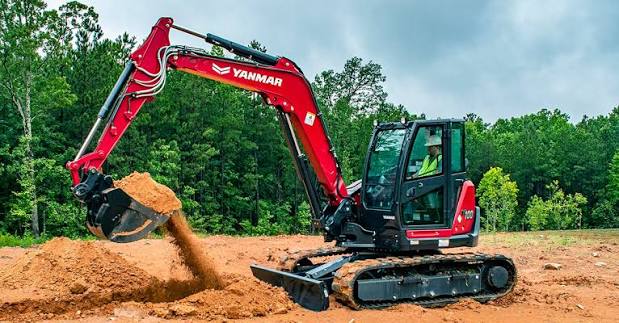

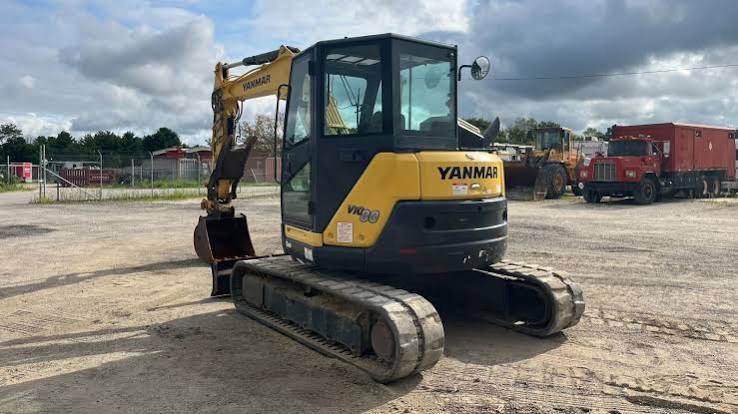

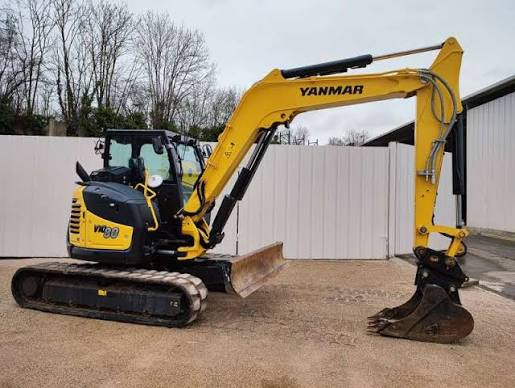

Yanmar VIO80-1A Mini Excavator
1 / 5
Image 1 of 5
Image: hmequipment.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight18,136 lb
Fuel Capacity30.4 gal
Hydraulic Pump Flow Capacity56.3 gal/min
Hydraulic System Relief Valve Pressure11,298 psi

Engine

Engine specifications
Engine ModelYANMAR 4TNV98C-WBV
Power Measured @2,000 rpm
Gross Power56.9 hp
Net Power55.7 hp
AspirationWater-cooled 4-cycle diesel

Weights

Weights specifications
Ground bearing pressure (rubber tracks)5 psi
Rubber Tracks18,136 lb
Steel tracks18,268 lb
Ground bearing pressure (steel tracks)5 psi

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab106 in
Wheelbase114 in
Width to Outside of Tracks90 in
Removal Counterweight Clearance47 in
Overall Height285 in

Undercarriage

Undercarriage specifications
Max Travel Speed2.8 mph
Min Travel Speed1.6 mph

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth185 in
Max Reach Along Ground287 in
Boom Swing - Left57 °
Boom Swing - Right60 °

Bucket

Bucket specifications
Bucket digging Force - SAE11,330 lb
Arm digging Force14,275 lb

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Blades

Blades specifications
Blade Width90 in
Blade Raise19 in
Blade Stroke19 in
