YTO

WY10

Excavator

Operating Weight
21,605 lb
Max Digging Depth
161 in
Net Power
80.5 hp
All excavators

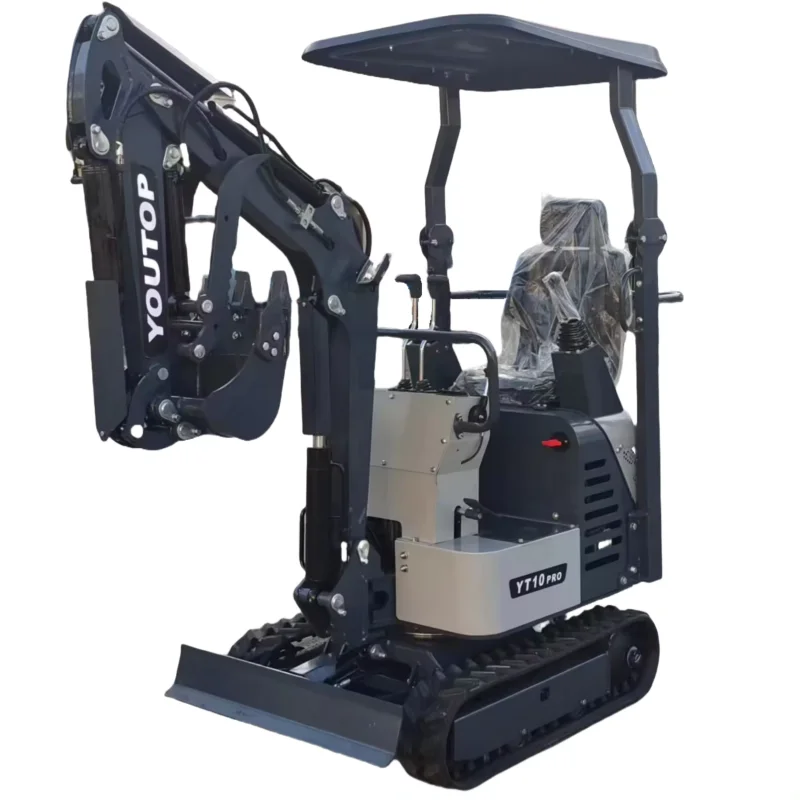

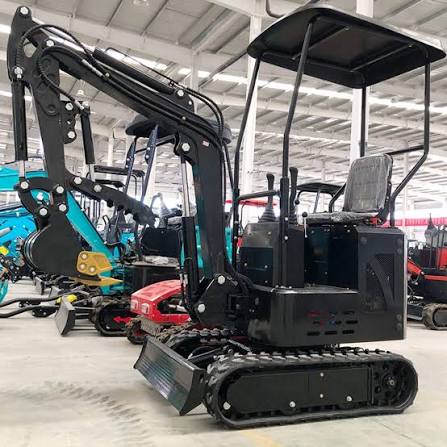

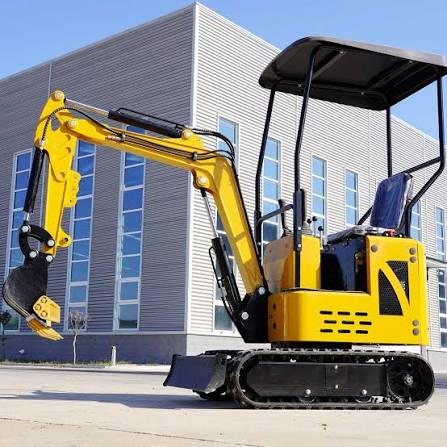

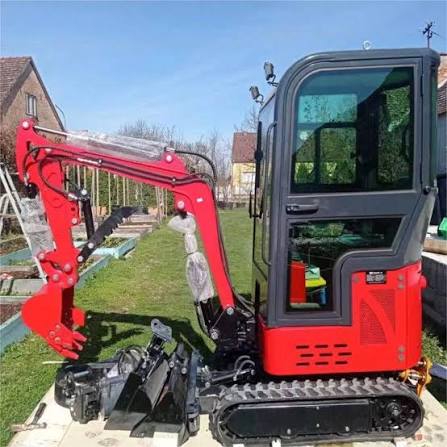

YTO WY10 Excavator
1 / 5
Image 1 of 5
Image: alibaba.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight21,605 lb
Hydraulic System Relief Valve Pressure4,061 psi

Engine

Engine specifications
Engine ModelLR4105ZG56
Power Measured @2,200 rpm
Net Power80.5 hp
AspirationTurbocharged

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab111 in
Length of Track on Ground104 in
Tail Swing Radius77 in
Width to Outside of Tracks96 in
Removal Counterweight Clearance40 in

Undercarriage

Undercarriage specifications
Track Gauge73 in
Max Travel Speed7.8 mph
Shoe Size15 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth161 in
Max Loading Height161 in
Max Cutting Height224 in

Bucket

Bucket specifications
Reference Bucket Capacity0.60 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm
