YTO

YZ18F

Smooth Drum Roller

Operating Weight
39,683 lb
Max Speed
5.8 mph
Drum Width
84 in
Gross Power
177.1 hp
All smooth drum rollers

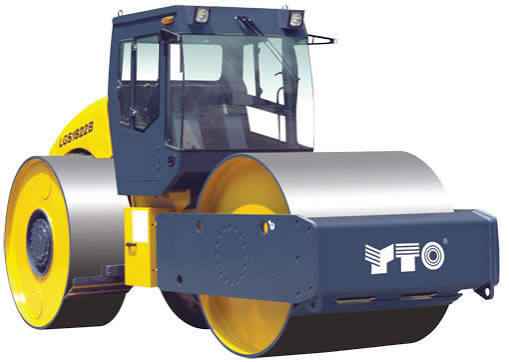

YTO YZ18F Smooth Drum Roller
1 / 5
Image 1 of 5
Image: orangehire.com.au

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight39,683 lb
Max Speed5.8 mph
Operating Voltage24 V
Turning Radius276 in

Engine

Engine specifications
Engine ModelD6135
Gross Power177.1 hp

Dimensions

Dimensions specifications
Ground Clearance14 in
Height - Top of Cab125 in
Wheelbase10 in
Overall Length21 in
Overall Width95 in

Drum

Drum specifications
Drum Width84 in
Drum Diameter63 in
Vibration Frequency 133 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High71,939 lb
Vibration Frequency 230 vpm
Static Linear Load191 lb-ft
Centrifugal Force - Low49,008 lb
Nominal Amplitude - Low0 in
