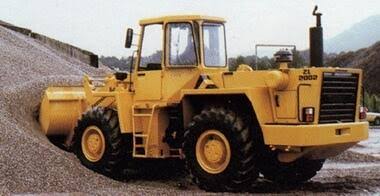

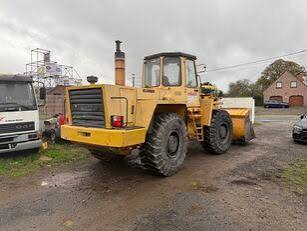

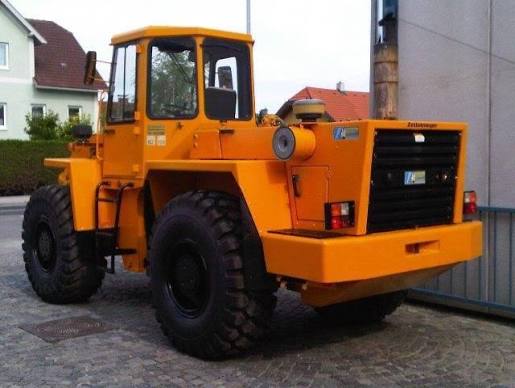

Zettelmeyer
ZL2002
- Operating Weight
- 28,660 lb
- Bucket Capacity - heaped
- 3.30 yd³
- Gross Power
- 178.0 hp
- Net Power
- 166.0 hp
1 / 5
Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 28,660 lb |
|---|---|
| Fuel Capacity | 60.8 gal |
| Tire Size | 20.5-25 16PR |
| Hydraulic System Fluid Capacity | 45.0 gal |
| Static Tipping Weight | 23,766 lb |
| Operating Voltage | 24 V |
| Turning Radius | 230 in |
| Engine Oil Fluid Capacity | 4.3 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 65 A |
| Front Axle/Diff Fluid Capacity | 6.9 gal |
| Rear Axle/Diff Fluid Capacity | 6.9 gal |
| Transmission Fluid Capacity | 7.4 gal |
Engine
| Engine Model | 6 BTA 5.9 |
|---|---|
| Displacement | 359 in³ |
| Power Measured @ | 2,300 rpm |
| Gross Power | 178.0 hp |
| Net Power | 166.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbo + aftercooled |
| Torque Measured @ | 1,500 rpm |
Hydraulic System
| Pump Flow Capacity | 60.8 gal/min |
|---|---|
| Raise Time | 6.0 s |
| Lower Time | 4.5 s |
| Dump Time | 1.6 s |
| Relief Valve Setting | 3,336 psi |
| Pump Type | tandem axial piston |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 124 in |
| Wheelbase | 119 in |
| Reach at Max Lift and Dump | 43 in |
| Length with Bucket on Ground | 282 in |
| Hinge Pin - Max Height | 152 in |
Transmission
| Max Speed - Forward | 23.7 mph |
|---|---|
| Max Speed - Reverse | 15.6 mph |
| Transmission Type | full powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.30 yd³ |
|---|---|
| Bucket Capacity - struck | 2.90 yd³ |
| Dump Clearance at Max Raise | 117 in |
| Breakout Force | 31,136 lb |
| Bucket Width | 103 in |
