Chetra

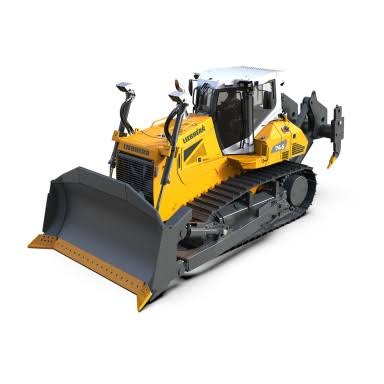

Liebherr
RL64
Crawler Dozer
50 specifications
1 / 5
Image 1 of 5
Specifications
25 data points
Operating Specifications
| Operating Weight | 152,119 lb |
|---|
Engine
| Engine Model | KTTA-19 C520 |
|---|---|
| Displacement | 1,150 in³ |
| Power Measured @ | 1,900 rpm |
| Gross Power | 480.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,300 rpm |
| Max Torque | 1,650 lb-ft |
Dimensions
| Ground Clearance | 26 in |
|---|---|
| Overall Length | 248 in |
| Overall Width | 235 in |
| Length of Track on Ground | 168 in |
| Overall Height | 397 in |
| Height to Top of Suspended Cab | 173 in |
| Lift Capacity at Max Reach | 28,660 lb |
Transmission
| Max Speed - Forward | 7.9 mph |
|---|---|
| Max Speed - Reverse | 9.4 mph |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Track Gauge | 107 in |
|---|---|
| Shoe Size | 34 in |
| Number of Shoes per Side | 48 |
| Ground Contact Area | 11,331 in³ |
Boom
| Max Lift Capacity | 231,265 lb |
|---|
